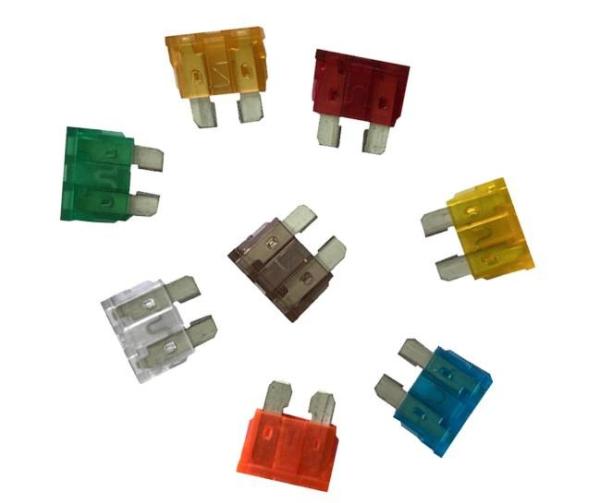

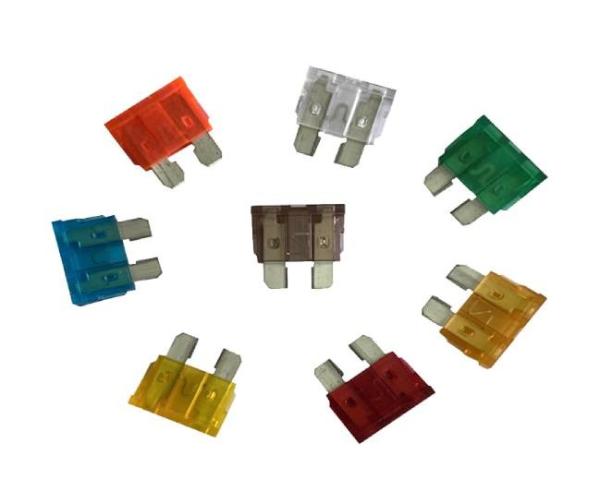

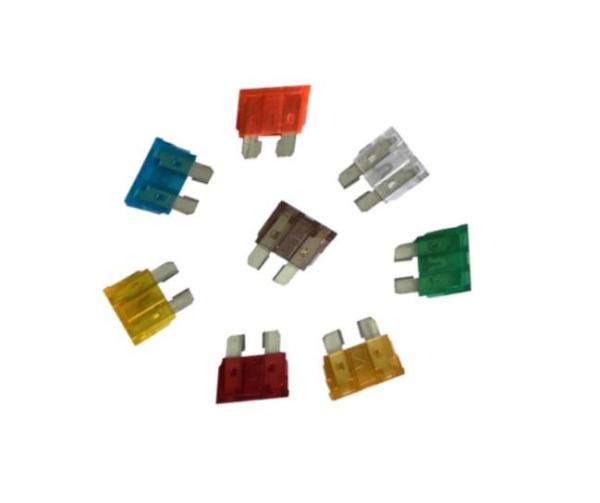

PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
Specifications
Brand Name :
DissMann
Model Number :
DFN-A
Certification :
UL,CCC
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material: :
PC and metal
Usage: :
Automobile,UPS,power supply
Rated Voltage: :
32VDC
Rated Current: :
1A-40A
Fusing Speed: :
F
Keyword: :
Low Voltage Fuse
Description

PBT fuse Auomotive Mini blade fuse low profile mini fuse flosser fuse

Material:
Base / Cap: PC
Pins: Zinc Alloy

Product Presentation:

Rated Voltage

额定电压

 32VDC

Characteristic

特性

 F快断

Rated Current
额定电流

 1A-40A

Breaking Capacity

分断能力

 DC1000A

Meet the Requirement

符合要求

UL248,ISO8820,

欧盟和RoHS 指令

Remarks

备注

 UL


产品外形尺寸(mm)/Overall dimensions of the product(mm)


PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses

产品型号/Product type

Model

型号

Product code

产品代码

Rated current

额定电流 A

I²t

(A²Sec)

Voltage drop

电压降 mV

Pigment

颜色
DFN-A DFN-A-1 1 0.4 174 黑色(Black)
DFN-A-2 2 1.5 140 灰色(Gray)
DFN-A-3 3 6.3 137 浅紫色(Violet)
DFN-A-4 4 13 135 粉红色(Pink)
DFN-A-5 5 25 125 浅棕色(Tan)
DFN-A-7.5 7.5 56 115 棕色(Brown)
DFN-A-10 10 110 110 红色(Red)
DFN-A-15 15 295 102 蓝色(Blue)
DFN-A-20 20 480 96 黄色(Yellow)
DFN-A-25 25 1000 90 透明色(Clear)
DFN-A-30 30 1460 86 绿色(Green)
DFN-A-35 35 2205 88 深绿色(Dark green)
DFN-A-40 40 3200 95

橙色(Orange)


电流特性曲线图/Current characteristic curve

PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses

Test equipment
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
Production equipment
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
PBT Automotive Blade Fuses , 32VDC Low Profile Mini Car Fuses
