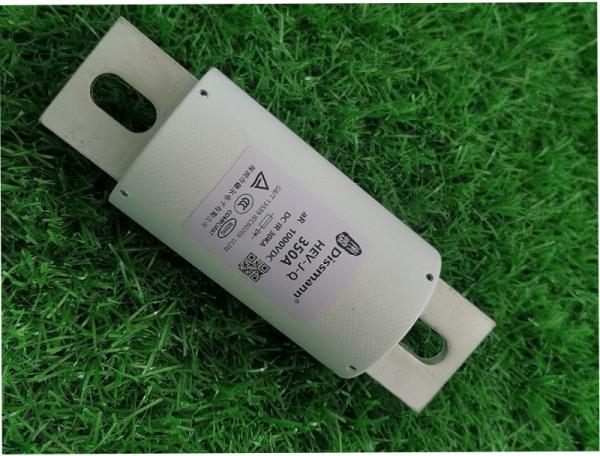

1000VDC High Voltage Fuse , Ceramic Fiber Hv Fuse Link

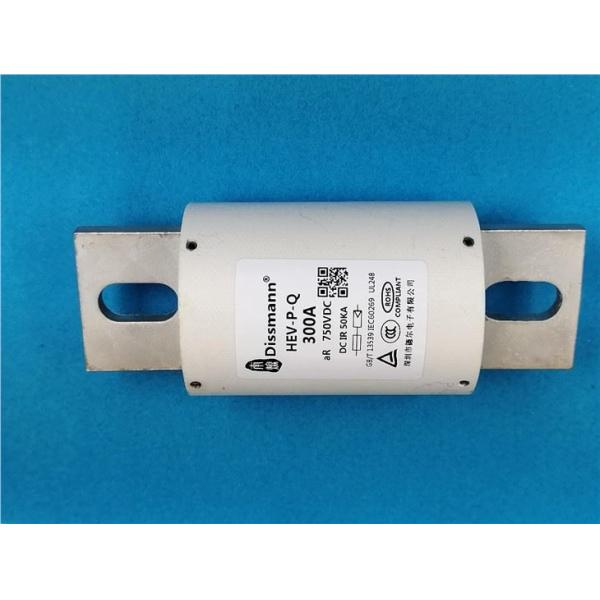

1000VDC High Voltage Fuse , Ceramic Fiber Hv Fuse Link
Specifications
Brand Name :
Dissmann
Model Number :
HEV-J-Q
Certification :
TUV/CCC
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Color :
White
Rated Current :
5A-800A
Rated Voltage :
1000VDC
Type of Protection :
aR
Breaking Capacity :
AC100KA/DC30KA
Installtion :
Bolt on
Meet the requirements :
UL248-20、ISO8820、JASO-D622、EU and RoHS detective
Description

TUV certified HEV fuse supplier in China

Product specification

Material

Body :Fiber

Caps :Copper alloy

Terminal : Copper alloy
Characteristic Use in electric vehicles charging protection boards
Interrupting Rating AC100KA/DC30KA at 1000VDC
Ampere Raing 5A-800A
Voltage ( DC) 1000VDC
Voltage(AC) 1000VAC
Permissible Conditions of Use -40℃～120℃
Green Mark RoHS
Safety Approvals TUV

Application of the HEV fuse

This HEV fuse are used extensively in cars, trucks, buses and off-road transportation equipment to protect the cables, wires and electrical components that supply electrical power to operate lights, heaters, air conditioning, radios, power windows and other electrical accessories. They are also used in electric and hybrid vehicles and a variety of electronic applications.

Related standard

This HEV series fuse meet the requirement of UL-248-20,ISO8820,JASO-D622,EU and RoHS detective,etc.

Dimension of the HEV fuse,Choose the dimension according to the rated current.

1000VDC High Voltage Fuse , Ceramic Fiber Hv Fuse Link

1000VDC High Voltage Fuse , Ceramic Fiber Hv Fuse Link

Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33

HF1:HEV-J-Q 5A~80A

HF2:HEV-J-Q 90A~150A

HF3:HEV-J-Q 175A~325A

HF4:HEV-J-Q 350A~500A

HF5:HEV-J-Q 600A~800A

HF1 and HF2 size available in mounting bolt M8 recommened torque 11N·m(Current range of 5A~150A)

HF3 and HF4 size available in mounting bolt M10 recommened torque 20N·m(Current range of 175A~500A)

HF5 size available in mounting bolt M12 recommened torque 28N·m(Current range of 600A~800A)


Material of the HEV fuse

The main boby material is fiber tube,the fuse wire consist of copper or silver and the end cap made of Copper alloy tin plating.
