IEC Standard Battery Protection Fuse , Ceramic Tube High Breaking Capacity Fuses
IEC Standard Battery Protection Fuse , Ceramic Tube High Breaking Capacity Fuses
Specifications
Brand Name :
Dissmann
Model Number :
MEV-J-C20
Certification :
TUV
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Rating Current :
100A-315A
Rating Voltage :
AC/DC1000V
Breaking Capacity :
DC50KA
Type of protection :
aR
Related Standard :
UL248-13、ISO8820、JASO-D622、IEC60269、RoHS
Application :
Energy storage system、EV charger
Installation :
Bolt on
Description

IEC standard battery protection fuse supply in China

Basic information of the Dissmann®IEC standard fuse

Material

Body :Ceramic

Caps :Copper alloy

Terminal : Copper alloy
Characteristic Use in electric vehicle drive power system, power
Interrupting Rating DC50KA at 1000VDC/AC
Ampere Raing 100A-315A
Voltage ( DC) 1000VDC
Voltage(AC) 1000VAC
Permissible Conditions of Use

-40℃～85℃
Green Mark RoHS
Safety Approvals TUV

Structure of the MEV fuse

The tube shape of this MEV fuse is square.The porcelain tube is made of ceramics.The bottom touch knife is copper alloy tin plating,and the inside is composed of melting slices,solid glue and quartz sand.

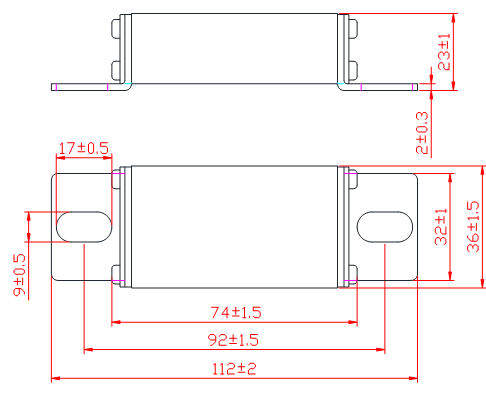

Dimension of the MEV fuse

IEC Standard Battery Protection Fuse , Ceramic Tube High Breaking Capacity Fuses

Model Product code Rated current I²t(A²Sec) Power consumption
Pre-arc Total
MEV-J-C10/ MEV-J-C10/C20-100 100 695 4650 24
MEV-J-C20 MEV-J-C10/C20-125 125 1200 8500 28
MEV-J-C10/C20-160 160 2300 16000 32
MEV-J-C10/C20-200 200 4200 28000 37
MEV-J-C10/C20-250 250 7750 51500 42
MEV-J-C10/C20-300 300 10900 73000 50
MEV-J-C10/C20-315 315 10900 73000 50

Feedback:

1. After receiving items, Buyer’s early confirmation will be highly appreciated

2. Because your feedback is very important for the development of our business, we sincerely invite you to be satisfied with our products and services. Essence

3. Please contact us before leaving any negative or neutral feedback. We will solve any problems with us. Thank you for your understanding.

Dissmann®Factaory Display

IEC Standard Battery Protection Fuse , Ceramic Tube High Breaking Capacity Fuses

Dissmann® Fuse workshop display

IEC Standard Battery Protection Fuse , Ceramic Tube High Breaking Capacity Fuses

FAQ

Question:How to select the current of the fuse?

Answer:Generally, we will calculate our rated current fuse according to 1.5 times of the customer's actual operating current.
