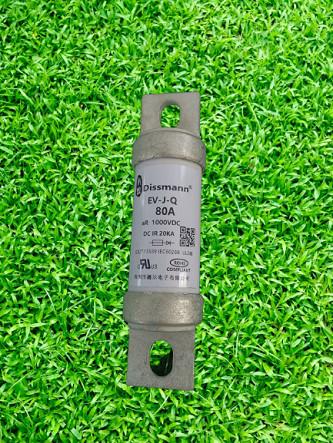

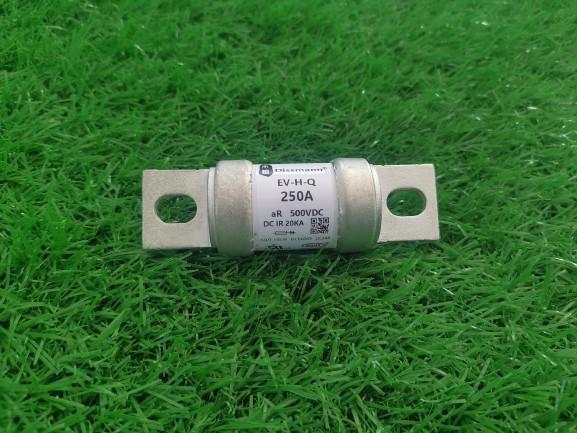

AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse
Specifications
Brand Name :
Dissmann
Model Number :
EV-J-Q
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
2-3 weeks
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Rated Voltage :
1000VDC
Rated Current :
10A-800A
breaking Capacity :
AC100KA、DC20KA
Color :
White
Application :
EV Charger、Charging Pile Module、
Related Standard :
UL248-20、ISO8820、JASO-D622
Description

120 Amp EV Series Fuse For EV Charger Protection Made in China

1.Feature of EV Series

The appearance structure of this EV series fuse is composed of two end caps and a tube. The material of the end cap is Copper Alloy Tin Plating, and the tube is ceramic.This series fuse is available for the rated DC voltage of 1000VDC,the rated current range is10A-800A line,the breaking capacity is AC100KA or DC 20KA.Applicable for road vehicle. with small size, high breaking capacity, temperature shock resistance,current surge, mechanical vibration and shock, and strong chemical load.

2.Scope of EV ceramic fuse

This EV ceramic fuse is our Dissmann Fuse brand hot -selling product. At present, many customers mainly choose to use for charging piles, charging pile modules, low -speed cars, and battery fields.

3.Related standard

This EV series fuse approve by UL248-20,ISO8820,JASO-D622,EU and RoHs Detectives.

4.Electrical Parameter

Model Rated Current(A) 100% voltage drop (mv) Installation
EV-J-Q-120 120 145

Install Bolt M8,

Recommend Torque: 11N.m

5.Dimension in milimeter of EV Fuse

AC100KA DC20KA Ceramic Automotive Fuses , EV Charger High Voltage Automotive Fuse

Model Dimension Code A±2 B±1.5 C±1 D±1.5 F±1 G±0.5 H±0.2 J±1
EV-J-Q VJ1 116 30.4 75.5 97 9 25 4 13
VJ2 139.75 37.3 75.75 108.75 11 25 6 15
VJ3-1 148 53.5 90.1 117.9 12.5 40 8 20
VJ3-2 173 53.5 114.7 143 12.5 40 6 20

6.FAQ

1.what is your company's main product?

We're company main product are fuse and fuse holder.We have high voltage automotive fuse,low voltage automotive fuse,energy storage battery fuse,power fuse,solar PV fuse,charging pile fuse etc.

2.Are you the manufacturer or the trader?

We are company belong to manufacturer.
