80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse
Specifications
Brand Name :
Dissmann
Model Number :
EV-J-Q
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days

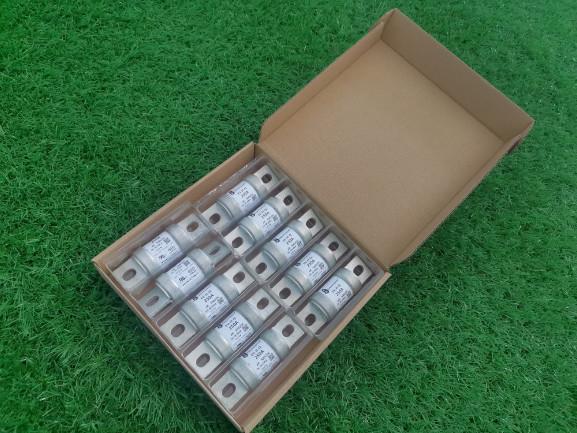

Packaging Details :
Standard Carton Packing
Material :
Ceramic
Rated Voltage :
1000VDC
Rated Current :
80A
Color :
White
Breaking Capacity :
DC20KA、AC100KA
Installation :
Bolt on
Keyword :
Automotive fuse
Application :
Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs)
Description

Hot-sell EV ceramic fuse supplier in China for EV charger protection

1.Application and scope

This EV ceramic fuse are mainly Applicable for road vehicle. with small size, high breaking capacity, temperature shock resistance,current surge, mechanical vibration and shock, and strong chemical load.Currently,This EV fuse are our Dissmann hotsell product at home and abroad.Our Dissmann Fuse and other well -known brands have the same performance, but the price is two to three times cheaper than them.

2.Struture of EV fuse

The melting tube of the EV fuse is made of high -temperature resistance ceramic material, which has high fire performance and solid hardness.Seal the melt in the melting pipe and make 99.99 % sterling silver into a variable cross -section melt. The melting tube fills the chemical treatment of high -purity quartz sand and specially treated chemical materials as an arc to extinguish the agglomeration.

3.Parameter of EV fuse

Rated Current:10A-800A

Rated Voltage:AC/DC1000V

Breaking Capacity:AC100KA/DC20KA

Type Protection:aR

Related Standard:UL248-20,ISO8820,JASO-D622,EU and RoHS Detetives

4.Product Type

Model Rated current I²t(A²s) Power consumption Size Code Install
Pre-arc Fusing W Dimension code
EV-J-Q-30 30 120 850 5 VJ1 Mounting Bolt M8 recommended torque 11N·m
EV-J-Q-40 40 300 1700 7.5
EV-J-Q-50 50 450 2500 10
EV-J-Q-60 60 620 3600 12.5
EV-J-Q-70 70 850 5600 14
EV-J-Q-80 80 1100 6600 15.5
EV-J-Q-90 90 1850 10600 17
EV-J-Q-100 100 2300 12000 18
EV-J-Q-125 125 3400 21000 20
EV-J-Q-150 150 4800 25000 25
EV-J-Q-175 175 9200 40000 30 VJ2 Mounting Bolt M10 recommended torque 20N·m
EV-J-Q-200 200 15000 60000 34
EV-J-Q-225 225 19000 105000 40
EV-J-Q-250 250 23500 113000 43
EV-J-Q-275 275 24800 128000 48
EV-J-Q-300 300 26000 155000 52
EV-J-Q-325 325 32700 175000 56
EV-J-Q-350 350 40000 223000 60 VJ3-1 Mounting Bolt M12 recommended torque 28N·m
EV-J-Q-400 400 56000 290000 65
EV-J-Q-450 450 78000 390000 80
EV-J-Q-500 500 105000 490000 90
EV-J-Q-600 600 165000 560000 105 VJ3-2
EV-J-Q-800 800 420000 870000 175

5.Dimension in milimeter

80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse

Model Dimension code A±2 B±1.5 C±1 D±1.5 F±1 G±0.5 H±0.2 J±1
EV-J-Q VJ1 116 30.4 75.5 97 9 25 4 13
VJ2 139.75 37.3 75.75 108.75 11 25 6 15
VJ3-1 148 53.5 90.1 117.9 12.5 40 8 20
VJ3-2 173 53.5 114.7 143 12.5 40 6 20

80 Amp High Voltage Fuses , 1000VDC EV Charger Protecion Fuse

6.FAQ

1.What is your price term?

The price term of our company is EXW. We are only responsible for the cost of the product. If the customer has an agent, we will assist the customer to send the goods to the agent, otherwise we can make express arrangements according to the customer's needs.

2.What's the delivery time of the EV fuse mass production?

In the case of lack of materials, the first batch of orders will take three to four weeks; the second batch, we know the procurement plan in advance, we will prepare materials in advance, and it will take two to three weeks.
