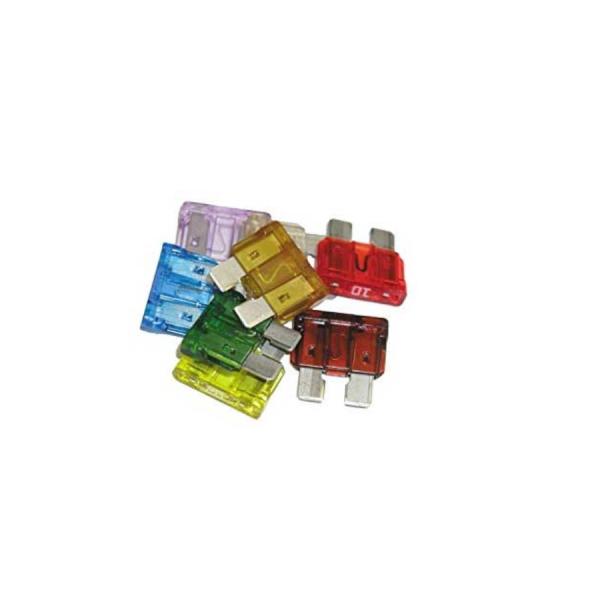

Automotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade Fuse
Automotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade Fuse
Automotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade Fuse
Automotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade Fuse
Specifications
Brand Name :
Dissmann
Model Number :
DFN-A
Certification :
UL,CCC
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Zinc alloy tin plating
Color :
Red,Blue,Black,Brown,Blear,Yellow,Green
Rated Current :
1A-40A
Rated Voltage :
DC32V
Breaking capacity :
DC1000A
Meet the requirement :
UL248、ISO8820、EU and RoHS
Description

Automotive car passenger fuse main us on automobile

Product Introduction of car passenger fuse

This car blade fuses are rated from 32 to 80 volts with ampere ratings from 1amp to 400 amps. This types of fuses are used extensively in cars, trucks, buses and off-road transportation equipment to protect the cables, wires and electrical components that supply electrical power to operate lights, heaters, air conditioning, radios, power windows and other electrical accessories. They are also used in electric and hybrid vehicles and a variety of electronic applications.

Product Feature of car passenger fuse

Wide range of ampere ratings

RoHS Compliant, Lead-Free

Product dimension in milimeter

Automotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade FuseAutomotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade Fuse

Product type of the car blade fuse

Model

Product code

Rated current

I²t

(A²Sec)

Voltage drop

Pigment
DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)

Current characteristic curve

Automotive Passenger UL Standard Car Blade Fuse , DC32V Mini Blade Fuse

Why choose our Dissmann Fuse?

The DISSMANN R & D team was established in 2000 and began to be committed to the independent R & D design and investment in the fuse industry. In the early 20th century's electronics industry, our companies stood out in this industry with glass pipe fuse and BS1362 fuse, and became the preferred supplier of many small home appliance manufacturers. Our company is a member of the Standardization Committee of China Small Fractives and Low -voltage Fuse. It participates in the formulation and modification of series of national standards such as GB9364 and GB13539. It has 4 invention patents and 12 practical patents.

Since the battery has been used in mobile phones and laptops, we have led the fuse technology used in DC circuit protection.

Based on these experiences and achievements, we have developed and added DC fuses for protecting EV/HEV/solar photovoltaic, high -voltage, large current, and high breaks.

Many of our products have been used as car components.
