51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
Specifications
Brand Name :
Dissmann
Model Number :
DNN-E-2
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000pcs
Delivery Time :
5-8 days
Packaging Details :
Standard Carton Packing
Rated Voltage :
DC80V
Rated Current :
10A-500A
Protection Type :
Time-lag
Breaking Capacity :
DC2700A
Meet the requirements :
UL248-13, ISO8820, JASO-D622,RoHS
Description

UL Certified Automotive Bolt-Down 51mm Fuse Equal to MEGA® HP 70V SF51 Series Fuse made in China

The Dissmann DNN-E series Fuse is designed for high current circuit protection up to 500A and also provides time delay characteristics. Designed and patented by Dissman fuse and the performance and dimension are equal to the Littlefuse MEGA® High Performance 70V SF51 Series Fuse,and is ideal for protecting batteries, alternators, and heavy gauge wire harnesses that experience large inrushes of current.

Features:

  • Voltage Rating: 80VDC
  • Interrupting Rating: 2700A @ 80VDC
  • Current ratings 10A - 500A

Applications:

  • Cars and SUVs
  • Trucks
  • Buses
  • Offroad vehicles

51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series

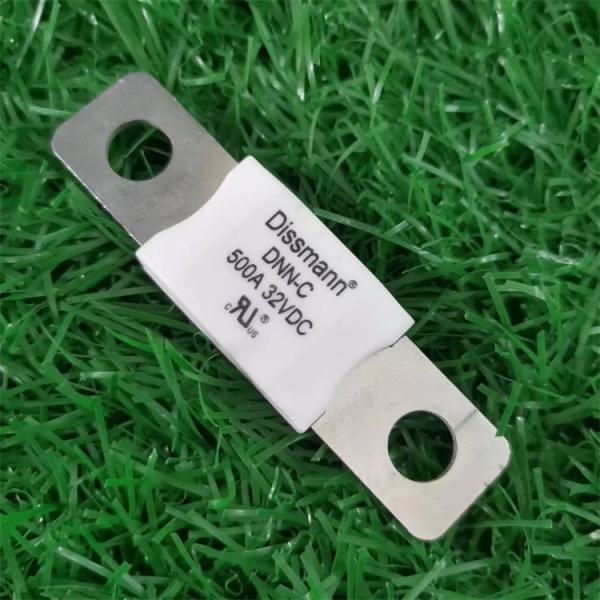

UL Certification Fuse Low Voltage 32VDC Fuse DNN-C series

51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series

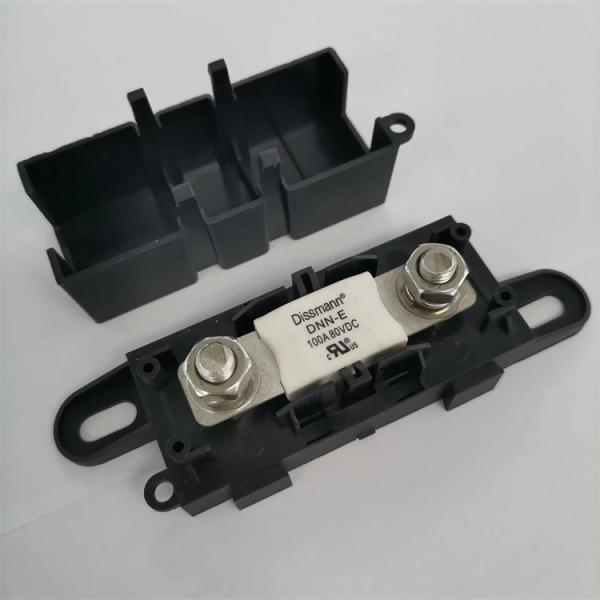

DC32V ceramic Fuse with Fuse Holder

Basic information of the fuse:

  • Type:Flat plug type automobile fuse (bolt-down type installation)
  • Dimensions and performance conforming to UL248
  • Conform to EU and China RoHS directives
  • The executive standard is UL248, UL certification number: E496054
  • M6 (9 Nm 1 Nm) and M8 (20 Nm 1 Nm) mounting holes
  • This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.
  • Equal to Littlefuse MEGA® HP 70V SF51 Series Fuse.

Dimension of the fuse:

51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series 51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
Rated Current ≤275A Rated Current ≥300A

When the Rated current ≥300Ampere,the contact foot will be thicker.

Materials of the DC80V Bolt-down fuse:

Component name

Material

Contact the foot

Copper alloy

Noumenon

Ceramics


Application of the Dissman 80VDC bolt-down fuse:

51mm UL Certified Automotive Bolt Down Fuse Equal To MEGA HP 70V SF51 Series
