DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage
DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage
DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage
DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage
DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage
DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage
Specifications
Brand Name :
Dissmann
Model Number :
EV-J-Q
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Rated Current :
300A
Rated Voltage :
DC1000
Type of protection :
aR
Breaking capacity :
AC100KA、DC20KA
Meet the requirement :
UL248-20、ISO8820、JASO-D622、EU and RoHS detective
Application :
electric vehicle drive power system, power conversion system, energy storage and power battery
Keyword :
EV charger fuse
Description

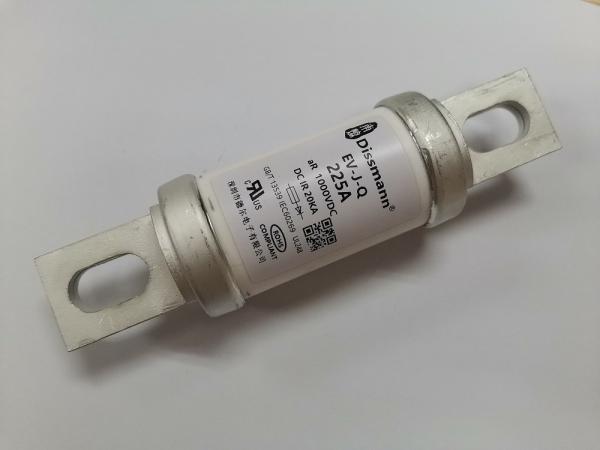

1000VDC EV semiconductor fuse designed for EV charger

Product description of 1000VDC EV fuse

This EV series fuse development with new energy vehicles,mostly customer use for EV charging station protect.We're Dissmann EV series fuse now hotsell to India and European market.The characteristic of rated current range is 10A-800A,rated voltage is 1000VDC,beaking capacity up to AC100KA,DC20KA at AC/DC1000V.EV series fuse available to bolt on,type of protection is aR.

Standard of EV fuse

The EV series fuse meet the requirement of UL248-20,ISO8820,JASO-D622,RoHS and EU detective.

Dimension of EV fuse

DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage

Size code of EV -J-Q fuse,Choose the code according to the rated current.

Model Size code A±2 B±1.5 C±1 D±1.5 F±1 G±0.5 H±0.2 J±1
EV-J-Q VJ1 116 30.4 75.5 97 9 25 4 13
VJ2 139.75 37.3 75.75 108.75 11 25 6 15
VJ3-1 148 53.5 90.1 117.9 12.5 40 8 20
VJ3-2 173 53.5 114.7 143 12.5 40 6 20

VJ1:Available in mounting bolt M8 recommended torque 11N·m,rated current range of 30A-150A

VJ2:Available in mounting bolt M10 recommended torque 20N·m,rated current range of 175A-325A

VJ3-1:Available in mounting bolt M12 recommended torque 28N·m,rated current range of 350A-500A

VJ3-2:Available in mounting bolt M12 recommended torque 28N·m,rated current range of 600A-800A

Product system code

DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage

Dissmann®Factaory Display

DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage

Dissmann® Fuse workshop display

DC1000V Semiconductor Fuses Reliable EV Charging Module High Voltage

FAQ

Question:What are your company price terms?

Answer:Our price is ex-work price, generally accept PayPal, TT payment.
