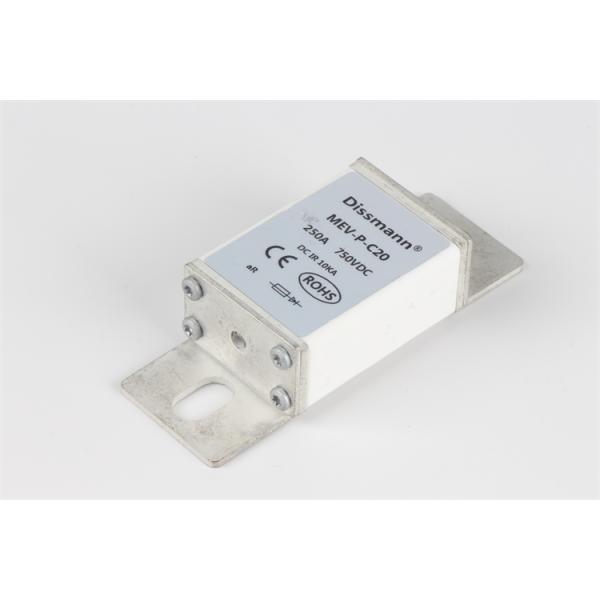

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified
DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified
DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified
DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified
Specifications
Brand Name :
Dissmann
Model Number :
MEV series
Certification :
UL248-13,ISO8820,JASO-D622,IEC60269,RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000pcs
Delivery Time :
5-8 days
Packaging Details :
Standard Carton Packing
Rated Voltage :
AC/DC1000V
Rated Current :
100A-315A
Protection type :
aR
Breaking Capacity :
DC50KA (time instant ≤10ms)
Application Field :
Energy Storage System
Description

High Voltage Automotive Fuse DC50Ka High Breaking Capacity Fuse UL Certified Fuse made in China

Square high-voltage automobile fuse

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified

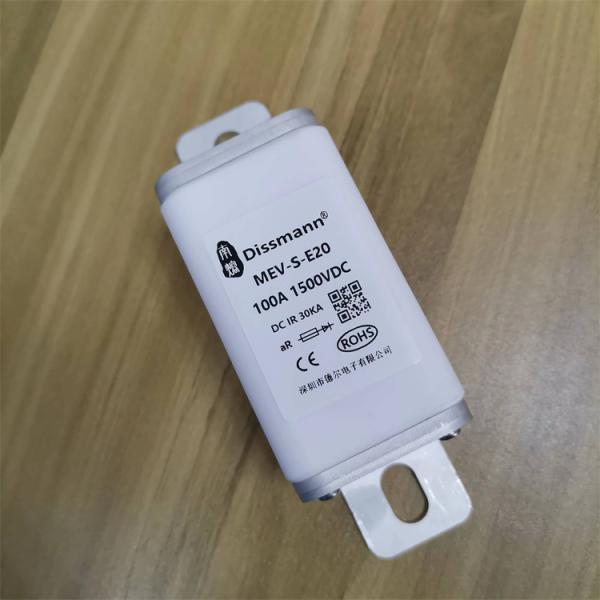

1500VDC 100A 30KA MEV-S-E20 automotive fuse

The Dissmann MEV series fuses are ceramic tube fuse. The rated voltage of the ceramic tube fuse should be consistent with the voltage of the power grid, and the current limiting ceramic tube fuse should not be used at reduced voltage generally.

1.Dimensions of the MEV-J-Cxx series fuse

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified

AC/DC 1000V (100A-315A)MEV-J-C10 series fuse

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified

Similar appearance MEV fuse

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified

AC/DC 1000V (100A-315A)MEV-J-C20 series fuse

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified

Similar appearance MEV fuse

2.Product types:

Model

Product code

Rated current

A

 I²t(A²Sec)

Power consumption

W
Pre-arc Fusing

MEV-J-C10/

MEV-J-C20

 MEV-J-C10/C20-100 100 695 4650 24
MEV-J-C10/C20-125 125 1200 8500 28
MEV-J-C10/C20-160 160 2300 16000 32
MEV-J-C10/C20-200 200 4200 28000 37
MEV-J-C10/C20-250 250 7750 51500 42
MEV-J-C10/C20-300 300 10900 73000 50
MEV-J-C10/C20-315 315 10900 73000 50

3.Application:

DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified
