Specifications
Brand Name :
Dissmann
Model Number :
DFN-A/E
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000pcs
Delivery Time :
5-8 days
Packaging Details :
Standard Carton Packing
Materials :
PBT
Rated Voltage :
DC32V/58V/80V
Breaking Capacity :
DC1000A
Meet the requirements :
UL248-13, ISO8820, RoHS
Description

Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China

Low Voltage Automotive Blade Fuse For Cars Trucks UL Certified

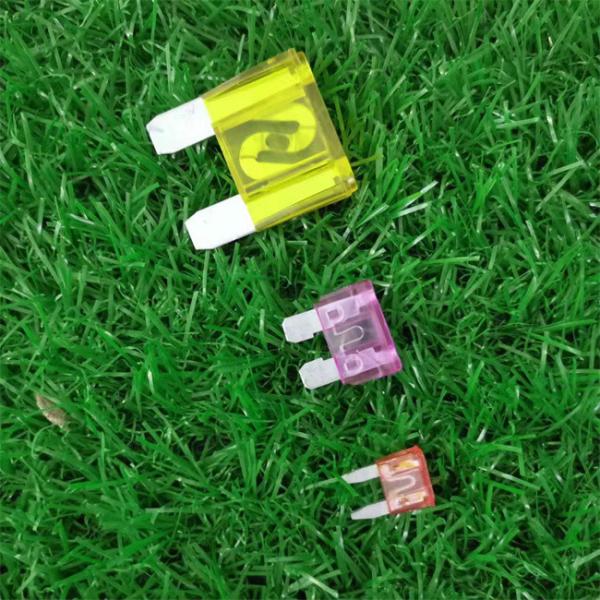

Large size automotive blade fuse 80VDC 50Amp

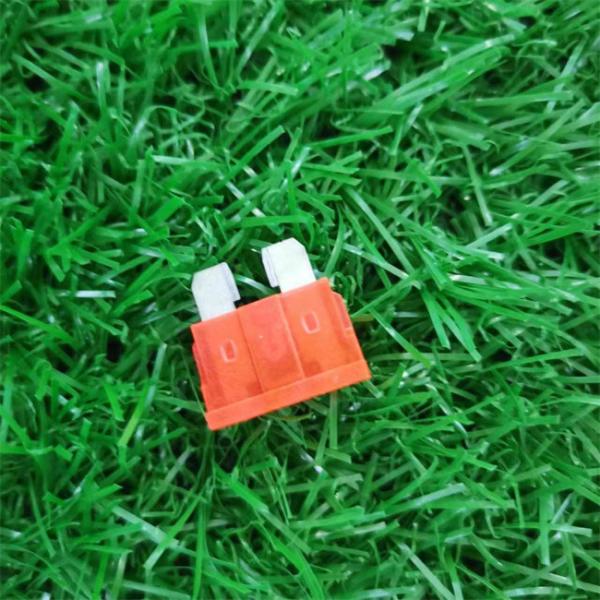

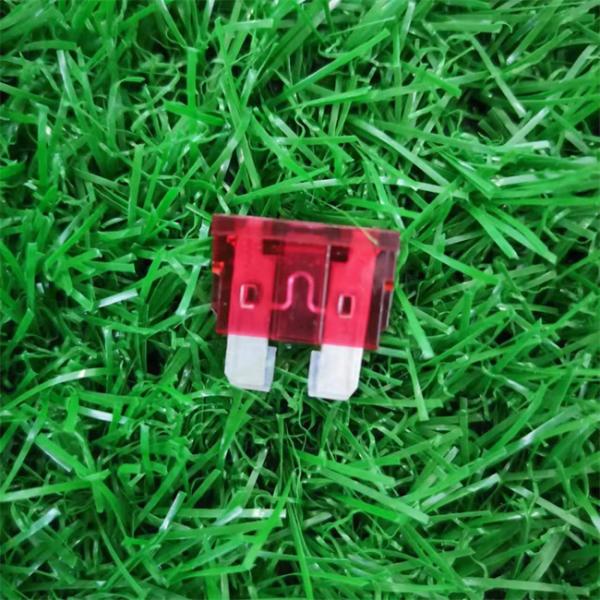

Medium size automotive blade fuse 32VDC 3Amp

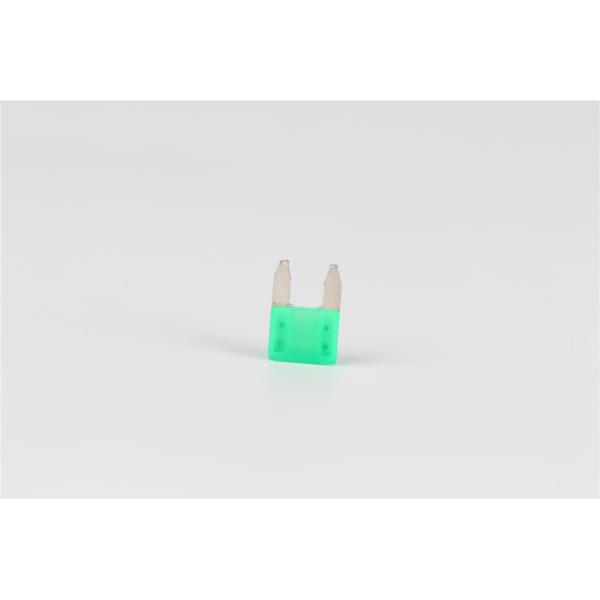

Small size automotive blade fuse 32VDC 4Amp

Dimensions of the Automotive blade fuse:

1.Large size automotive blade fuse 80VDC

Low Voltage Automotive Blade Fuse For Cars Trucks UL Certified Low Voltage Automotive Blade Fuse For Cars Trucks UL Certified

Product Type:

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment
DFN-E DFN-E-20 20 3500 100 (Yellow)
DFN-E-30 30 8200 97 (Green)
DFN-E-40 40 14200 93 (Orange)
DFN-E-50 50 22500 90 (red)
DFN-E-60 60 23000 95 (Blue)

2.Medium size automotive blade fuse 32VDC

Low Voltage Automotive Blade Fuse For Cars Trucks UL CertifiedLow Voltage Automotive Blade Fuse For Cars Trucks UL Certified

Product Type:

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment
DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)

3.Small size automotive blade fuse 32VDC

Low Voltage Automotive Blade Fuse For Cars Trucks UL CertifiedLow Voltage Automotive Blade Fuse For Cars Trucks UL Certified

Product Type:

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment
DKN-A DKN-A-2 2 2.8 170 (Gray)
DKN-A-3 3 9.3 152 (Violet)
DKN-A-4 4 17 120 (Pink)
DKN-A-5 5 24 128 (Tan)
DKN-A-7.5 7.5 66 135 (Brown)
DKN-A-10 10 92 108 (Red)
DKN-A-15 15 270 98 (Blue)
DKN-A-20 20 380 96 (Yellow)
DKN-A-25 25 620 85 (Clear)
DKN-A-30 30 1120 86 (Green)
