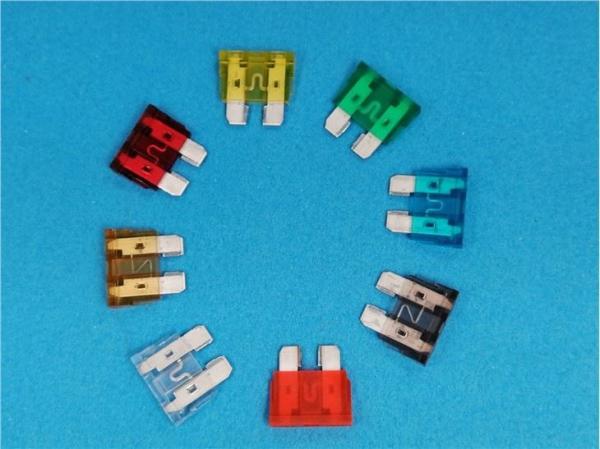

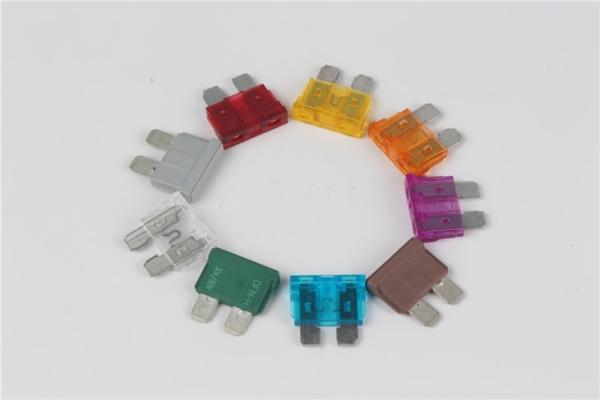

High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
High Voltage Mini Auto Blade Fuses 40 Amp 32vdc Flat Type Pc
Specifications
Brand Name :
Dissmann
Model Number :
DFN-A
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
PC
Colour :
White
Rated Current :
1A-40A
Rated Voltage :
32VDC
Breaking Capacity :
DC1000A
Characteristic :
F
Certificate Number :
E496054
Application :
electric vehicle drive power system, energy storage and power battery
Description

High Voltage 32VDC Automotive Mini Blade Fuse

1.Product Basic Information:

Rated Voltage 32VDC Characteristic F
Rated Current 1A-40A Breaking Capacity DC1000A
Meet the Requirement UL248,ISO8820,EU and ROHS Detective Remark UL

2.Product Type:

Model

Product code

Rated current

I²t

(A²Sec)

Voltage drop

Pigment
DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)

3.Product Application:

This DFN series fuse suitable for road vehicle industry applications, and can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage Short-circuit and backup protection of capacitors, inverter controllers, chargers, MSDs, wires and other automotive devices and equipment.

4.Manufacturing materials:

Part name Material
Meltable Zinc Alloy Tin Plating
noumenon

PC

5.Mark:

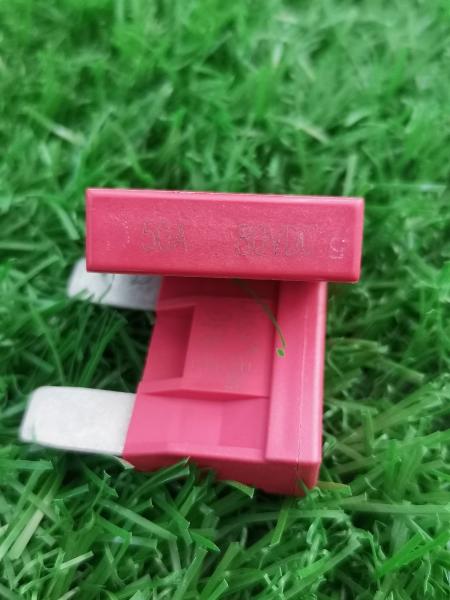

5.1 The specification (rated current, rated voltage) of the plug-in fuse is printed on the body, and its font cannot disappear and is clear and easy to see.

5.2 The rated current is as follows:

Model Color Rated Current(A)
DFN-A-5A Light Brown 5A
DFN-A-10A Red 10A
DFN-A-15A Blue 15A
DFN-A-20A Yellow 20A

6.Product Dimension:

Question: Are your products independently developed and produced?

Answer: All our products are developed and designed by our R&D team

Dissmann Fuses manufacturer, with 20 years' experience, trustful and competitive quality, price and services, please contact us for more info.
