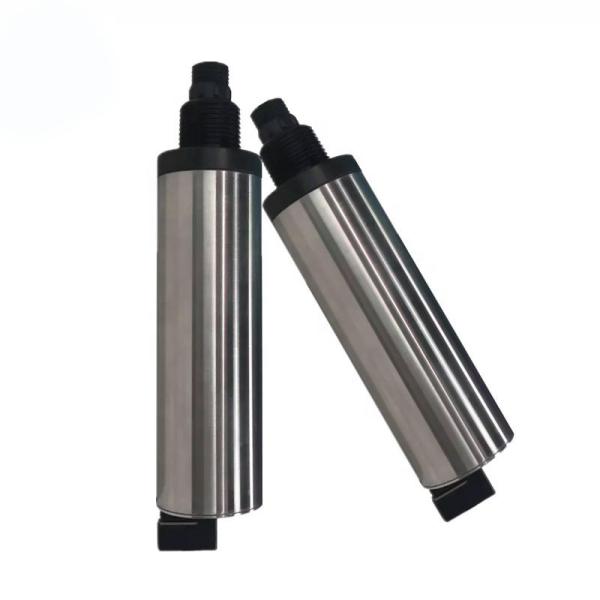

Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge
Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge
Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge
Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge
Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge
Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge
Specifications
Brand Name :
Desun Uniwill
Model Number :
DS530
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Determined by the number of specific orders
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2000 Piece/Pieces per Month
Packaging Details :
Carton packaging
Output signal :
RS-485, MODBUS protocol
Theory :
Ultraviolet fluorescence method
Measuring range :
0~100mg/L
Material :
SS316 (customizable titanium alloy)
Power supply :
DC 6~12V, current <50mA (when not cleaned)
Response time :
＜5 sec
Deepest length :
10 m
Description

Online Hydrocarbon Monitoring-Oil In Water Instrument Sensor-Detecting Oil Concentrations In Discharge

Oil-in-water sensors are essential tools in various industries, including oil and gas, wastewater treatment, and environmental monitoring. These sensors play a critical role in detecting and measuring the presence of hydrocarbons or oil in water, ensuring regulatory compliance, environmental protection, and overall safety.


Product Introduction

Commonly used oil-in-water detection methods include suspension, infrared spectrophotometry (unsuitable for low range), and ultraviolet spectrophotometry(unsuitable for high degree). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored in real-time.

The sensor has better repeatability and stability. A self-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warningrole on oil pollution in water. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations, and other water quality monitoring scenarios.


Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge

Features:

-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.


Technical parameters
Product Oil in water sensor
Model Number DS530
Max. working pressure 1 bar
Principle Ultraviolet fluorescence method
Response Time ＜5 sec
Measuring Range 0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
Temp range 0-50℃
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type, thread
Power information DC 6~12V, current <50mA (when not cleaned)
Cable length 5 meters (default), can be customized
Housing material SS316 (customizable titanium alloy)
Self-cleaning Brush Have
Optical window Have

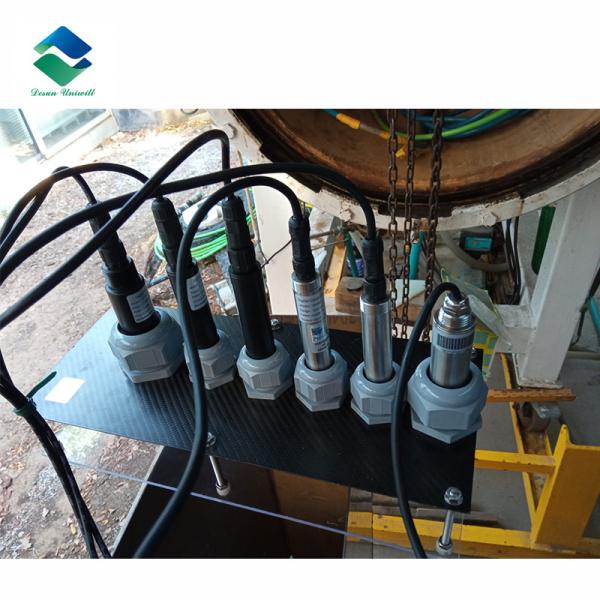

Cases:
Online Hydrocarbon Monitoring Oil In Water Instrument Sensor In Discharge

Selecting the right oil in water sensors are crucial for accurate and reliable monitoring of hydrocarbon concentrations in water. Consider factors such as sensor technology, measuring range, calibration, environmental conditions, certification, data output, sample handling, and size when making your decision. By thoroughly evaluating these aspects, you can ensure that your chosen sensor meets your specific needs and regulatory requirements, ultimately contributing to the success of your applications and environmental protection efforts.

If you have any questions when choosing an oil-in-water sensor, you can contact Desun Uniwill at any time. We will recommend the most suitable sensor to you based on your usage requirements.
