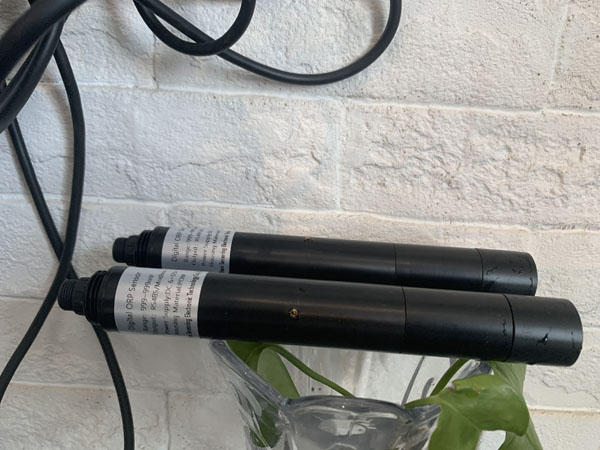

On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
Specifications
Brand Name :
Desun Uniwill
Model Number :
DS525
Place of Origin :
China
MOQ :
0-100pcs
Price :
According to the specific quantity
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
7-15 working days
Packaging Details :
carton packaging
Range :
-999~999mV
Deepest depth :
Underwater 30m
Protection level :
IP68
Maximum operating pressure :
6bar
Output signal :
RS-485, MODBUS protocol
Power information :
DC 5~12V, current <50mA
Probe cable length :
5 meters (default), can be customized
Housing material :
POM
Assembly :
Input type
Temperature range :
0~ 50°C
Description

On line monitoring of RS485 output signal for industrial grade laboratory ORP sensor IP68

On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters
Overview
The digital ORP sensor uses an industrial wire electrode with a flat front end for easy cleaning. Built-in temperature sensor for online long-term monitoring environment use. The sensor uses RS485 output and supports Modbus, which enables networking and ystem integration without a controller.
Technical specifications
item
value
Warranty
1 year
Customized support
OEM, ODM, OBM
Place of Origin
China
Brand Name
Xi'an Desun
Range
-999~999mV
Deepest depth
Underwater 30m
Protection level
IP68
Maximum operating pressure
6bar
Output signal
RS-485, MODBUS protocol
Power information
DC 5~12V, current <50mA
Probe cable length
10 meters (default), can be customized
Housing material
POM
Assembly
Input type
Temperature range
0~ 50°C

On Line Industrial Grade Laboratory orp Ph Redox Sensor IP68 10 Meters

Frequently Asked Questions

Error Possible causes Solutions

The operation interface cannot be connected or

the measurement results are not displayed

 Controller and cable connection error Reconnect the controller and cables
Cable failure Please contact us
Measured values are too high, too low, or the values remain unstable Measurement shifted Recalibration
Water has entered the product the product Please contact us

The orp electrolyte is

exhausted

Replace the orp

electrochemical part
probe size
26x167.5 mm(Φ xL)
Power information
Power supply must be DC 5-12v + / - 5%, current < 50mA
Cable information
4 wire awg-24 or awg-26 shielding wire. Od = 5mm
wire
1. Red wire - power supply (VCC)
2. White line - 485 data (485 A)
3. Green line -- 485 data (485 B)
4. Black wire - ground wire (GND)
5. Bare wire - shielding layer

Application examples of orp sensor

  • Wastewater plants
  • Wastewater treatment
  • Groundwater Monitoring
  • Drinking water monitoring
  • River monitoring
  • Aquaculture
  • Industrial waste water
  • Industrial Grade Water Quality Monitoring
Quality Assurance

Our company warrants to the first-hand buyer that there will be no defects in the product due to substandard materials or factory manufacturing for a period of 3 months after shipment. If a defect is found during the 3-month guarantee period, Textron Premium Electronics promises to repair or replace the product with a defect or refund the purchase price in addition to the first shipping cost and related procedures.

Any products repaired or exchanged within the warranty period will only be subject to the remaining warranty period of the original product.

This guarantee does not apply to consumables such as wear and tear parts (including but not limited to lamps, tubes, etc.). During the warranty period, please contact Textron United Electronics or your agent to start technical support. We will confirm whether a product requires repair within two weeks of receiving a customer's question about the quality of the product weeks; products that have not been approved for repair cannot be returned.

limit

This warranty does not cover the following:

● Damage caused by force majeure, natural disasters, social unrest, war (published or unpublished), terrorism, civil war, or any government coercion

● Damage caused by improper use, negligence, accident or improper application and installation

● Freight charges for shipping the goods back to Desun Uniwill Sensing Technology

● Expedited or express shipping for parts or products covered by the warranty

● Travel expenses for local warranty repairs

About Us

Xi'an Desun Uniwill Electronic Technology Co., Ltd (Hereinafter referred to as Disen Sensing Company) is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, R&D, sales and engineering services. Relying on Xi'an's rich high-tech resources, we have carried out technical cooperation with many universities and scientific research institutions, constantly breaking through technical barriers, improving product performance, and using leading technology to provide high-quality products for the water quality monitoring industry.

We launched a wireless water quality monitoring solution based on the current rapid development of the Internet of Things technology, combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.

Company philosophy

We are committed to the water quality monitoring industry, actively innovating and improving products, and optimizing industry application solutions. We take technology and quality as the cornerstone, honesty and service as the foundation, do a good job of water quality monitoring with our heart, and contribute to the development of the water quality monitoring industry. power. At present, the products are sold to more than 30 countries and regions overseas, and they have established their own sales network locally, cooperate with after-sales and maintenance personnel, and continue to supply water body monitoring equipment.

In Future, we will further increase the proportion of the domestic market on the basis of innovating high-quality products and improving technical services. Increase the after-sales maintenance force in first-tier cities to provide customers with timely and effective products and services.
