Stainless steel outdoor intelligent integrated distribution box cable branch box distribution cabinet JP cabinet

Product Overview:
JP integrated distribution box, is a concentration of measuring, qualification, reactive power compensation and other multi-functional comprehensive reach outdoor distribution equipment at an organic whole, with a short circuit, overload, over voltage, electric leakage protection function, small volume, beautiful appearance, economical and practical, installed on the outdoor column transformer pole, it is an ideal distribution of urban and rural power grid renovation of a new generation of products

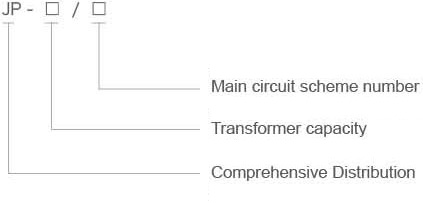

Model implication

Working conditions:
● Ambient temperature: -25℃+40℃;
● Relative humidity: daily average not more than 90%, monthly average not more than 90%;
● Altitude: ≤2000m
● Installation place: in no violent vibration and impact, no corrosive gas place.

architectural feature:

Box structure is divided into vertical and horizontal,the shell is made of 2mm high-quality stainless steel plate bent by multiple folding process (or the honeycomb structure of stainless steel double sandwich composite plate, with flame retardant, environmental protection, heat insulation, anti-condensation and other properties), using special stainless steel welding process, the overall strength of the box after molding, the surface is as smooth as a mirror, without leaving traces of weld; The internal installation beam (plate) is hot-dip galvanizing process, to ensure no corrosion within 20 years;box front and rear door, easy for user operation and maintenance, around the door is inlaid with high elastic aging resistant sealing strip, each door is equipped with light and dark two kinds of door lock, open lock is equipped with anti-blocking and anti-rust rain cover; Measuring room fully closed with lead seal device; The side of the box body is equipped with rain proof and foreign body proof incoming cable threading pipe, the bottom is punched with ventilation holes and cable outlet holes, the top is provided with ventilation duct and screen, with waterproof, rust, dust, foreign body prevention function, protection class IP54.

Main components: incoming line and feed unit, reactive power compensation monitoring unit, metering meter reading, distribution and change monitoring unit.

Incoming line and feed unit:

The incoming switch has the function of overcurrent and short circuit tripping. Automatic closing mechanism or circuit breaker with reclosing function can be selected to realize the remote remote power transmission function. The molded case circuit breaker with residual current protection function is selected for the feed switch. The inlet and outlet switches meet the requirements of protection grade difference.

Intelligent reactive power compensation belt monitoring communication unit:

HiBK composite switch switching or HiZ reactive power compensation module building block combination, zero crossing switching, automatic reactive power compensation. In addition to over current, over voltage, under voltage, phase break, three-phase balance and other protection functions, it also has over temperature, over harmonic protection

Metering and sheet copying:

It is composed of current transformer, electricity meter and concentrator, which can centrally read all the residents' meters under the platform area except the remote reading of the master meter for distribution and transformation.

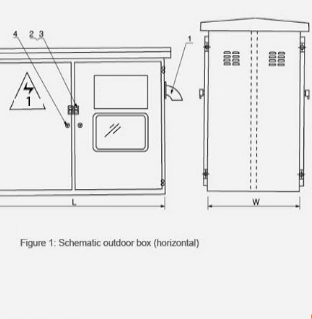

Schematic diagram of box structure:
