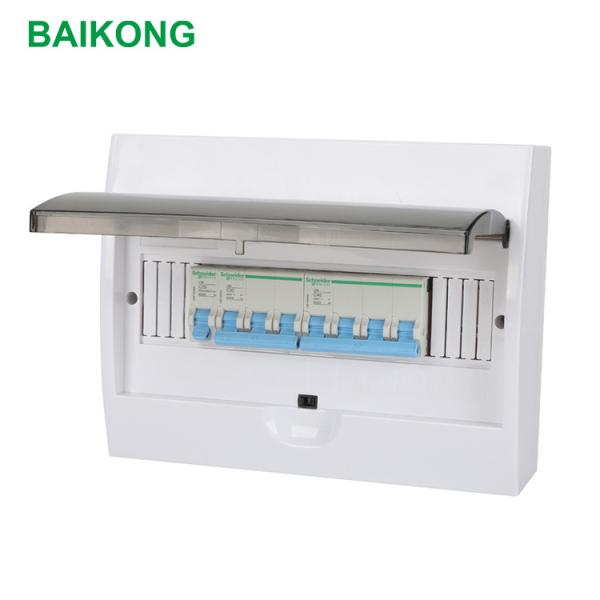

Low Pressure Waterproof Open Installation Household Distribution Box

Product overview

Household distribution box is mainly used in low-voltage distribution lighting system with AC 50HZ, rated working voltage 380/220V, rated working current up to 100A in distribution stations, factories, industrial and mining enterprises, civil buildings and other sites. The company's products can be customized, the shelf life of the product is one year, in the shelf life of the product to implement three packages of services, so that customers buy peace of mind with rest assured.

2. Normoal service condition

(1) The ambient air temperature ≤ +40℃ and its average temperature ≤+35℃ within 24 h. The lower limit of ambient air temperature is -5℃.
(2) Atmospheric conditions: the air is clean and the relative humidity ≤50% when the temperature is +40℃. At lower temperatures, greater relative humidity is allowed. For example, the relative humidity at +20 ° C is 90%. However, consideration should be given to the possibility of occasional moderate condensation due to temperature changes.
(3) Altitude ≤2000 m.
(4) Pollution level 3.

Open installation

Product features:

1. Transparent visible clamshell, IP30 protection grade, effectively prevent foreign bodies from entering, waterproof and dustproof
2. Strict selection of materials, reliable quality, fire retardant, reject inferior quality
3. Knock down holes for wiring. There are knock down holes on upper and lower sides
4. Humanized removable baffle, reserved space

Product details:

● Adjustable bracket

Flexible adjustment of box bottom embedded error easily adjust the level and depth
● Rear suspension hole
Convenient hanging wall convenient design
● ABS flame retardant material

Safety, environmental protection, fire retardant and durable

Installation tips

1. The installation of the power distribution cabinet should be installed in accordance with the manufacturer's frame size diagram.

2. After the installation of the product, should be checked and tested before it can be put into use.

Order conditions

When ordering products, the following documents shall be provided:
1) Primary system diagram.
2) Layout diagram of the PDC.
3) List of equipment in each cabinet (including model, specification and quantity).
4) Special requirements inconsistent with normal use conditions.
