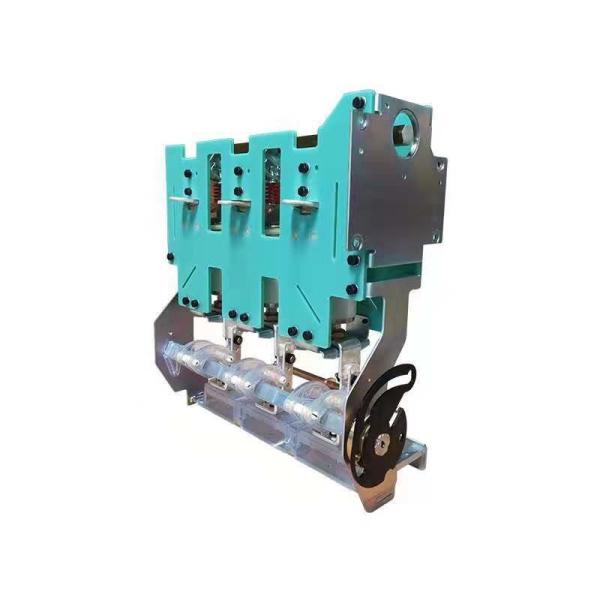

50Hz High Voltage Load Break Switch Manual 630A MCCB Circuit Breaker
50Hz High Voltage Load Break Switch Manual 630A MCCB Circuit Breaker
50Hz High Voltage Load Break Switch Manual 630A MCCB Circuit Breaker
50Hz High Voltage Load Break Switch Manual 630A MCCB Circuit Breaker
Specifications
Brand Name :
Baikong
Model Number :
ZHV-12D
Certification :
IEC,GB
Place of Origin :
Sichuan，China
MOQ :
10 Pieces(MOQ)
Price :
$5000-$10000/ Piece
Payment Terms :
T/T,, L/C, Western Union
Supply Ability :
50000 Pieces/per Week
Delivery Time :
5...15Days OR To be negotiated
Packaging Details :
wooden box/standard exporting carton
Product name :
High-voltage inflatable cabinet switch cabinet circuit breaker switch
Closing Ihree phases :
≤2m/s
Three phases of switching off :
≤2m/s
Closing average speed :
0.4-1.1m/s
Color :
customizable
Mean speed of gate separation :
0.6-1.4m/s
bounce :
≤2m/s
Open distance :
8-10mm
Super :
2-3un
Warranty :
1year
Rated frequency :
50Hz
Description

High-voltage inflatable cabinet switch cabinet circuit breaker switch

main technical parameters

Serial number content Company technical parameter
1 Main circuit resistance of circuit breaker un ≤30
2 Super mm 2-3
3 Open distance mm 8-10
4 bounce ms ≤2
5 Mean speed of gate separation m/s 0.6-1.4
6 Closing average speed m/s 0.4-1.1
7 Three phases of switching off ms ≤2
8 Closing Ihree phases ms ≤2

New type gas-filled cabinet circuit breaker switch, technical parameters: rated frequency 50Hz, rated current 630A, rated short-time withstand current 20kA, rated peak withstand current 63kA, rated short-circuit withstand duration 2S. The operating environment altitude does not exceed 2000m; the ambient air temperature is between +40°— -30°, and the relative temperature is 95% without jade per day.

product description

OYV-12 V-630A circuit breaker switch has the advantages of easy installation, less maintenance, long life, small size, low price, safety and reliability. This product meets the technical requirements of GB1984-89 and GB/T1984-2003 AC high-voltage circuit breakers. The main circuit is 630A-20kA (4S), 25kA (3S), and the mechanical life is 10,000 times. The ground loop is 20kA (2S), and the mechanical life is 2000 times.

Precautions for use environmental conditions

The altitude does not exceed 1000m,

The degree of shock does not exceed 8 degrees;

The ambient temperature of the product is -40℃~+140℃,

The daily average relative humidity is not more than 90%, and the monthly average is not more than 90%;

Installation sites with frequent violent vibrations, water vapor, gas, chemically corrosive deposits, salt spray, dust and dirt, and fires, which obviously affect the performance of the mechanism, are not suitable for installation sites with explosion hazards.

Shape and installation dimensions
