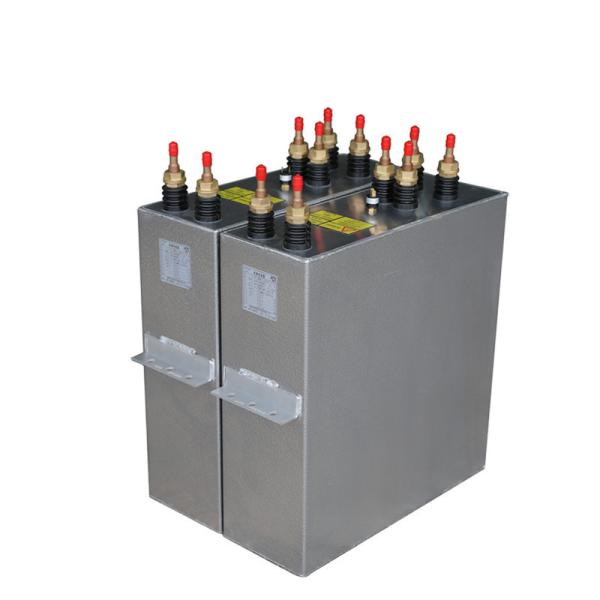

RWF Water Cooled Electric Heating Capacitor Organic Thin Film
RWF Water Cooled Electric Heating Capacitor Organic Thin Film
RWF Water Cooled Electric Heating Capacitor Organic Thin Film
RWF Water Cooled Electric Heating Capacitor Organic Thin Film
Specifications
Brand Name :
BAIKONG
Model Number :
RWF
Certification :
IEC,GB
Place of Origin :
Sichuan，China
MOQ :
1PCS（MOQ）
Price :
$100-$1000/PCS
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
300 sets/sets per week
Delivery Time :
15Days OR To be negotiated
Packaging Details :
Standard wooden boxes for outer packing/To be negotiated
Product Name :
RWF Series Water-Cooled Organic Thin-Film Electrothermal Capacitormal Capacitor
Color :
As Picture
Size :
As Picture
Allowable deviation :
±20（%）
Application :
Electrical & Electronics
Altitude :
＜1000m
Lead type :
Codirectional lead out
Dielectric material :
Organic Thin-film
Nominal Capacity :
160-1800（uF）
QA :
1year
Description

RWF Series Water-Cooled Organic Thin-Film Electrothermal Capacitor

Application

The capacitor for electric heating installations is mainly used in inductive heating system to increase power factor or improve circuit characteristic,the performance of RWF and RFM model of water cooled style and full film conforms to JB7110-93 (Capacitor for electric heating installations) and IEC30110(1998)(capacitors for inductive heat generating plants operating at frequencies between 40Hz and2400Hz) .

Working conditions

  1. Indoor uasge: Altitude:less than 1000m.
  2. No violent mechanical vibration, no harmful gas and vapor, no explo sive dust in location.
  3. Temperature of cooled flowing-in less than30℃; Flowing watervolume of capacitor less than1000kvar.mot less than 4 L per min, 1000kavr or more not less than 6L per min.Long-term over-voltage (less 4 hours within24) less than 1.1 Un;Long term over-current(including harmonic current) less than 1. 35ln.

Main model specifications
Model Voltage(kV) Capacity (kvar) Frequency (Hz) Electric Capacity (μF) Curren (A)
F0.75-500-1S 0.75 500 1.0 4x35.4 667
F0.75-750-1S 0.75 750 1.0 4x53.5 1000
F0.75-1000-1S 0.75 1000 1.0 4x70.7 1333
WF1.0-1000-1S 1.0 850 1.0 4x39.8 1000
WF1.5-850-1S 1.5 1600 1.0 4x15.0 567
WF1.0-1600-1.1S 1.0 1000 1.1 4x57.9 1600
WF0.75-100-2S 0.75 8000 2.0 4x35.4 1333
WF0.65-800-2.5S 0.65 1000 2.5 4x30.1 1231
WF0.75-1000-2.5S 0.75 1000 2.5 4x28.3 1333
WF0.75-1000-3S 0.75 1600 3.0 4x23.6 1333
WF1.0-1600-3S 1.0 1200 3.0 4x21.2 1600
WF0.75-1200-4S 0.75 1000 4.0 4x21.2 1600
RWF0.75-1000-8S 0.75 800 8.0 4x8.84 1333
RWF0.75-800-10S 0.75 200 10.0 4x5.66 1067
RWF0.5-200-20S 0.5 200 20.0 4x1.59 400
RWF0.5-200-25S 0.5 200 25.0 4x1.27 400
RWF0.75-200-25S 0.75 200 25.0 4x0.566 267
RWF0.5-200-30S 0.5 200 30.0 4x1.06 400
RWF0.75-200-30S 0.75 200 30.0 4x0.472 267
RWF0.5-200-40S 0.5 200 40.0 4x0.796 400
RWF0.75-200-40S 0.75 200 40.0 4x0.354 267
RWF0.5-180-50S 0.5 180 50.0 4x0.573 260
RWF0.75-180-50S 0.75 180 50.0 4x0.255 240

Note:

1. The actual capacitance of the capacitor with the tail note number "B" is configured in the ratio of 4:8:1:9:2, S-water-cooled, and B-graded adjustable output.

2. Capacitors with rated capacity of 500Kvar or above of 4KHz or above are copper enclosure, design number: 1-capacitor enclosure is copper plate or brass plate (digital 1 omitted) 2,3-capacitor enclosure is silicone rubber seal for aluminum plate outlet casing.

3. The rest are copper shell.

4. Model description: such as: RWM0.75-320-2S, R (representing electric thermal) W (liquid medium) M (solid medium) 2 (Design No.: Housing Material) 0.75 (voltage) -320 (capacity) -2 (frequency) S (tail note)
