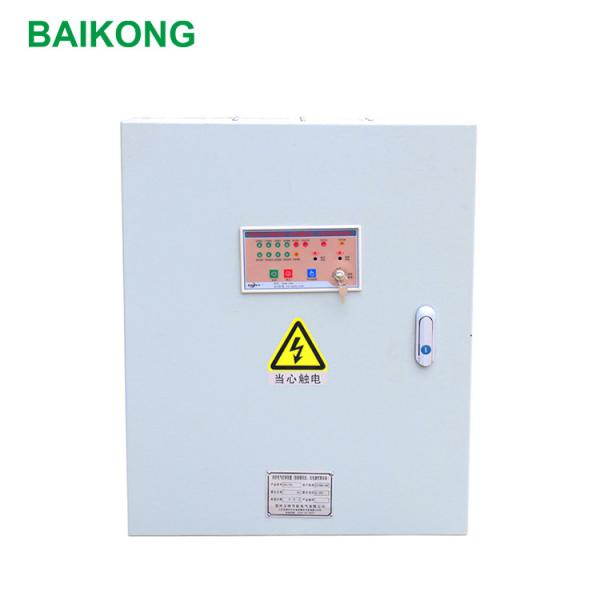

Dual Power Supply Fire Fan Electrical Distribution Cabinet Single Speed IP30
Dual Power Supply Fire Fan Electrical Distribution Cabinet Single Speed IP30
Dual Power Supply Fire Fan Electrical Distribution Cabinet Single Speed IP30
Dual Power Supply Fire Fan Electrical Distribution Cabinet Single Speed IP30
Specifications
Brand Name :
BAIKONG
Certification :
IEC,GB
Place of Origin :
Sichuan，China
MOQ :
1set（MOQ）
Price :
$1000-$10000/set
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
300 sets/sets per week
Delivery Time :
15Days OR To be negotiated
Packaging Details :
Standard wooden boxes for outer packing/To be negotiated
Product Name :
Dual Power Supply Single Speed Fire Fan Electrical Distribution Cabinet
Color :
As Picture
Material :
Cold-roll Steel Sheets
Install :
Wall-hanging
Environmental Applications :
Pump Control,Motor Control,Fan Control
Applicable Targets :
Low Tension
Protection Grade :
IP30
Motor Power :
0.75kw-18.5KW/Customizable
Rated Voltage :
220V
Customized Service :
Customizable
Description

Dual Power Supply Single Speed Fire Fan Electrical Distribution Cabinet

Detail introduction

The principle of the controller type single power fan distribution box is that when the fire center receives the fire signal, the control cabinet of the fire smoke machine is connected to start the fire engine and open the smoke valve.

Product features:

1. The main switch is short circuit, short delay and overload protection. Customers can choose the protection type according to the needs of system cooperation and it has self-input, non-self-input and switch control for customers to choose.

2. Horizontal bus has two kinds of single bus and segmented. When using single bus, the bus switch has self input, no self input and switch control.

3. Motor control loop with short circuit fault transient process, load, undervoltage protection, working voltage and phase difference maintenance, DC contactor can use static data for actual operation, with the actual effect of energy saving, customers can choose suitable fan distribution box according to the provisions of the project.

Product Name

Fire Fan Distribution Box

 Box Size 300x400x160mm
Product Power 0.75-18.5KW Box Thickness 0.8mm
Rated Voltage AC380V Install Wall-hanging
Clap Voltage AC220V Quality Assurance Service One year
Description of Characteristics It can be used to control the direct start, stop of various water pumps, motors, and fans, and with local control or remote fire control.With short circuit, overload protection, fire valve connection point, fire emergency control, fire DC24V strong start, operation feedback, fault feedback.

Eight functions:

1. Manual automatic

2. Exhaust air and smoke

3. Fault indication

4. Passive (switching) strong start

5. Local control/remote start

6. Fire valve linkage

7.24V signal linkage

8. Fire feedback

Unremitting efforts for safety Multiple protection

  • Adjustable short-circuit protection

Disconnect the circuit in time when the motor short circuit

  • Overload protection

Disconnect the circuit when it is overloaded

  • Buy a fault to block transfer protection

Disconnect the circuit when the motor fails and stops running

  • Fan protection

When the fire valve is broken, the fan stops by itself
