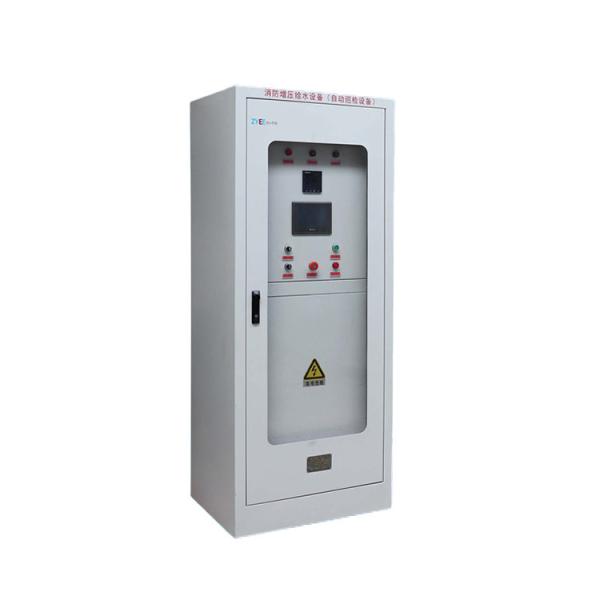

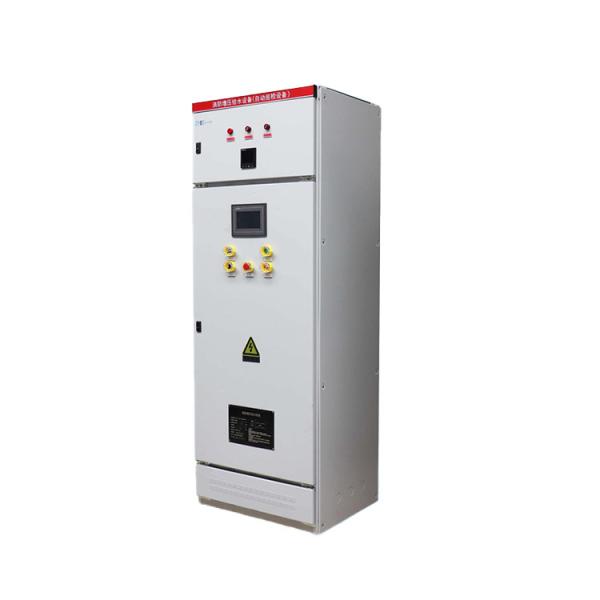

IP55 Dual Power Fire Pump Automatic Inspection Cabinet

Product Overview

With the rapid development of urbanization, there are more and more types of buildings with different conditions, large core application of combustible materials in buildings and other factors that may be vulnerable to fire, plus people's low awareness of fire prevention, which greatly increases the possibility of fire. Although at present each building department is equipped with fire extinguishing system, but experience and lessons have proved that the success of fire fighting depends mainly on whether the fire water supply equipment is intact. Fire pump is an important part of water skyfire system, its characteristic is usually not for a long time, once the use is 100%, due to idle for a long time, plus the pump room environment humidity, it is easy to happen fire pump shaft and impeller corrosion, rust and the phenomenon of the electrical components cannot be used properly, that there is a fire, the fire pump will not operate properly, Unable to extinguish the fire, endangering the safety of people's lives and property.

In order to solve the fire problem, our company combined with the above problems, independent research and development out of the set alarm, monitoring, control and management in the integration of digital intelligent fire inspection cabinet, and has set up a batch production and use: this product can prevent fire pump corrosion, be affected with damp be affected with damp, water pump is abnormal, the function of fault, do "find one thousand days, with soldiers" purpose. The product conforms to the technical specifications of national fire pressurized water supply equipment standard GB 27898.3-2011, and has passed the inspection and certification of National Fire Engineering technology Research Center.

Functional Table

Model Meaning

Parameter

• Rated voltage:0-380V.
• rated current: AC A.
• Inspection Power: Single Pump
• Maximum:15-220KW.
• Inspection circuit: 1-14 circuit (special requirements).
• Inspection cycle: 1-168 hours, single pump inspection time: 10-300S (inspection cycle and time can be set according to need).

Operating Environment

• Environmental temperature: -10℃ ~ + 40℃.
• Ambient humidity: 0~90% ℃ and no dew.
• Elevation: less than 2,000 meters.
