Overview

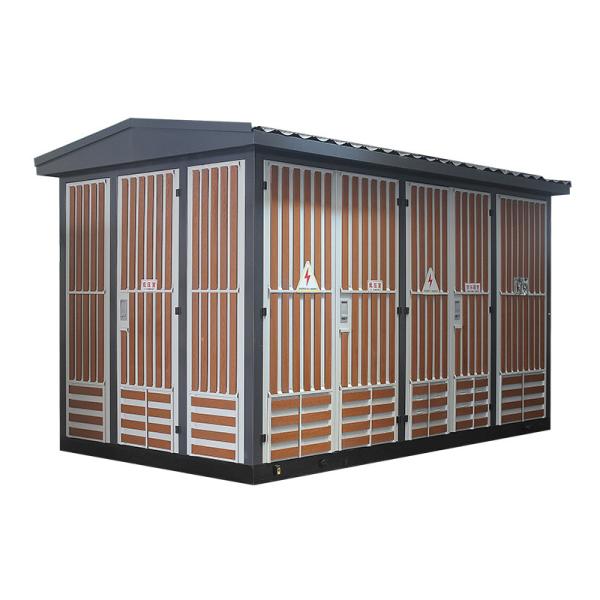

European type box substation(MV/LV Prefabricated Substations) is also known as outdoor complete substation, also known as combined substation, because it has the advantages of flexible combination, easy transportation, migration, convenient installation, short construction period, low operating cost, small footprint, no pollution, maintenance-free, etc. , Received wide attention. In rural power grid construction (reconstruction), it is widely used in the construction and transformation of 10~110kV small and medium-sized substations (distribution) substations, factories and mines, and mobile operation substations in urban and rural areas, because it is easy to penetrate into the load center and reduce the power supply radius. , Improve the quality of terminal voltage, especially suitable for rural power grid transformation, known as the target mode of substation construction in the 21st century.

The main technical parameters

Features

1. Advanced technology, safe and reliable, the box body adopts the current domestic advanced technology and technology, the outer shell is generally made of galvanized steel plate, and the frame is made of standard container materials and production processes. It has good anti-corrosion performance and guarantees no corrosion for 20 years. It is sealed inside. The board is made of aluminum alloy gusset, and the interlayer is made of fire-proof and heat-preserving materials. The cabinet is equipped with air-conditioning and dehumidification devices. The operation of the equipment is not affected by the natural climate environment and external pollution. It can ensure normal operation in the harsh environment of -40℃~+40℃. The primary equipment in the box adopts domestic technical equipment such as unit vacuum switchgear, dry-type transformer, dry-type transformer, vacuum circuit breaker (spring operating mechanism), etc. The product has no exposed live parts and is a fully insulated structure, which can completely reach zero In the event of electric shock, the whole station can realize oil-free operation with high safety. The second time adopts a microcomputer integrated automation system to realize unattended operation.

2. High degree of automation. Intelligent design of the whole station. The protection system adopts the integrated automation device of the substation and is installed in a distributed manner. The "four remotes" can be realized, namely, remote measurement, remote signaling, remote control, and remote adjustment. Each unit has independent operation. The function, relay protection function is complete, the operating parameters can be remotely set, and the humidity and temperature in the cabinet can be controlled to meet the requirements of unattended operation.

3. In the factory prefabrication design, as long as the designer makes a design of the main wiring diagram and external equipment according to the actual requirements of the substation, they can choose the specifications and models of the box substation provided by the manufacturer, and all equipment will be installed and debugged in the factory at one time Qualified, truly realize the factory construction of substations, shorten the design and manufacturing cycle; on-site installation only requires cabinet positioning, cable connection between cabinets, outlet cable connection, protection setting verification, transmission test and other work that needs to be debugged. The entire substation takes about 5-8 days from installation to commissioning, which greatly shortens the construction period.
