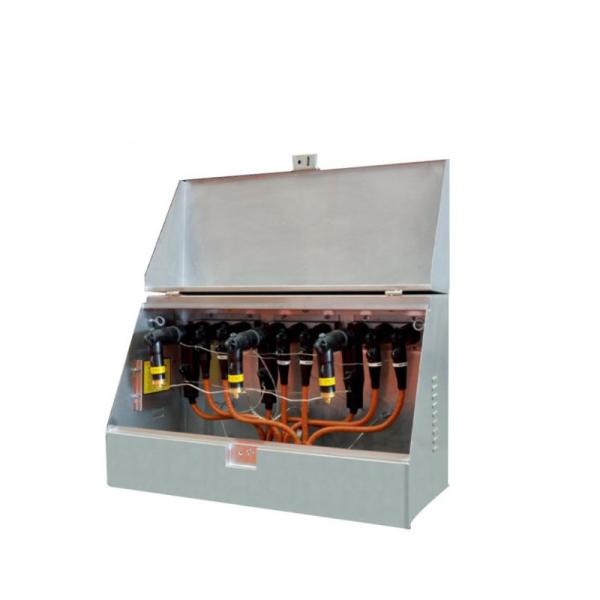

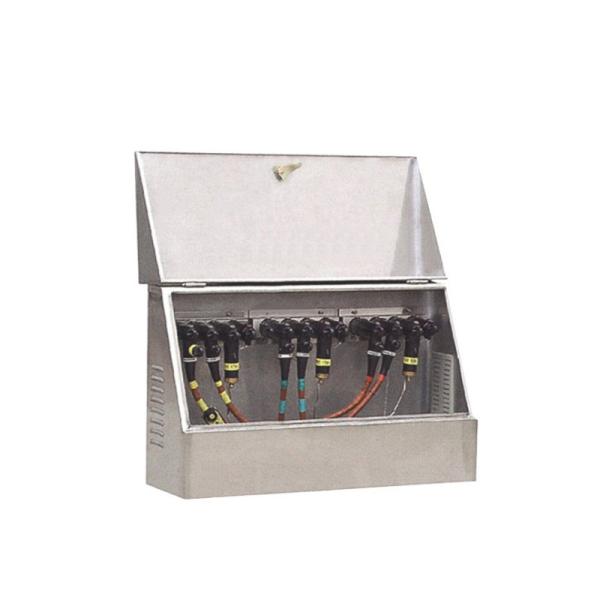

DFW fully insulated and fully sealed American cable branch box

The main technical parameters

Product Introduction

Product name: DFW American cable branch box

Category: Cable branch box

Product introduction: Overview of American cable branch box: American cable branch box, with its excellent performance, standardized design, and beautiful appearance, is widely used in cable engineering equipment in cable distribution network systems. In major industrial parks, Residential quarters, densely populated urban areas, commercial centers, and high-rise buildings are generally recognized. It is characterized by one-way door opening and horizontal multi-pass busbars, and has the advantages of small width, flexible combination, full insulation, and full sealing. According to the rated current, it can be generally divided into 600A main circuit and 200A branch circuit. The 600A main circuit adopts screw-in bolt connection; the 200A branch circuit adopts plug-in connection and can be plugged and unplugged under load. American cable branch box model and its meaning: American cable branch box normal operating conditions: ◆Ambient temperature: temperature not higher than +40℃, temperature not lower than -30℃ ◆Wind speed: equivalent to 34m/s (not more than 700Pa)

Overview of American cable branch box

American cable junction box, with its excellent performance, standardized design, and beautiful appearance, is widely used in cable engineering equipment in cable distribution network systems. It is widely used in major industrial parks, residential areas, urban densely populated areas, and commercial Various places such as centers and high-rise buildings are generally recognized.

It is characterized by one-way door opening and horizontal multi-pass busbars, and has the advantages of small width, flexible combination, full insulation, and full sealing. According to the rated current, it can generally be divided into 600A main circuit and 200A branch circuit.

The 600A main circuit adopts screw-in bolt connection; the 200A branch circuit adopts plug-in connection and can be plugged and unplugged under load.

Adapt to the environment

· Environmental temperature: highest temperature: +40℃, lowest temperature -30℃

· Wind speed: equivalent to 34m/s (not more than 700Pa)

· Humidity: The average daily relative humidity is not more than 95%

The average monthly relative humidity is not more than 95%

· Anti-vibration: the horizontal acceleration is not more than 0.4m/s2, the vertical acceleration is not more than 0.15m/s2

· Inclination of installation site: not more than 3°

· Installation environment: the surrounding air should not be obviously polluted by corrosive, flammable gas, water vapor, etc., and there should be no severe vibration at the installation site.

Note: When ordering this product beyond the above conditions, please consult with our company.
