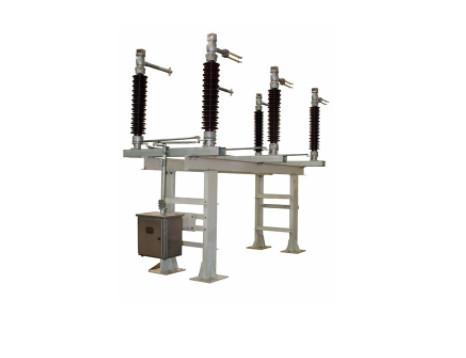

40.5-252kV 1250-4000A High Voltage Products IEC 62271-102 Outdoor
40.5-252kV 1250-4000A High Voltage Products IEC 62271-102 Outdoor
40.5-252kV 1250-4000A High Voltage Products IEC 62271-102 Outdoor
40.5-252kV 1250-4000A High Voltage Products IEC 62271-102 Outdoor
Specifications
Brand Name :
BAIKONG
Model Number :
GW4 Outdoor AC Disconnector
Certification :
IEC,GB
Place of Origin :
Sichuan，China
MOQ :
1set（MOQ）
Price :
$1000-$100000/set
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
300 sets/sets per week
Delivery Time :
15Days OR To be negotiated
Packaging Details :
Standard wooden boxes for outer packing/To be negotiated
Product Name :
GW4 Outdoor AC Disconnector
Color :
As Picture
Size :
As Picture
Series :
Vacuum Circuit Breaker
rated current Category :
2000-3150(A)
Rated voltage :
40.5-252kV
mechanical life :
20000 times
Rated short-circuit breaking current :
40-50kA.
Mean split speed :
0.9 ~ 1.2m/s
Mean closing speed :
0.5 〜0.8m/s
Description

40.5-252kV. 1250-4000A IEC 62271-102 Outdoor AC Disconnector High Voltage Products

Technical

specificApplication: In rated voltage 40.5~252kV power system, to separating the circuits under off-load status, set up air electrical clearning between the tested electrical apparatuses and electrified circuit.

Standards: IEC 62271-102

Parameters: Rated voltage: 40.5-252kV.
Rated current: 1250-4000A.
Rated short time withstand current, 3s: 50kA.

Features: 1.Outstanding performances and reliable operation.
2.Free maintenance due to its stable contact pressure and self-cleaning capability.
3.High anticorrosion capability.
4.Easy installation and adjustment.

Item Unit Parameter
Rated voltage kV 40.5 126 145 252
Rated current A 2000 2000 2000 3150
Rated short time withstand current, 3s kA 40 40 40 50
Rated peak withstand current kA 80 100 100 125
Rated power frequency to earth kV 95 230 275 460
withstand voltage (rms) Open contacts kV 110 230 + 70 315 460+145
Rated lightning impulse It' earth kv 185 550 650 1050
withstand voltage (peak) Open contacts KV 215 550+100 750 1050+200
Rated tension of connecting terminal Longitudinal 750 1000 1000 1500
Horizontal N 400 750 750 1000
Vertical 500 1000 1000 1250
Min failing load N 4000 6000 6000 8000
ES induction Electromagnetic Rated induction current A — 50 80 80
current coupling Rated induction voltage kV — 0.5 2 1.4
switching Electrostatic capability coupling Rated induction current A — 0.4 2 1.25
Rated induction voltage kV — 3 6 5
Open/close bus switching circuit A — 1600 1600 1600
Mechanical life Time 3000 3000 3000 3000
Single pole weight kg 80 240 300 650

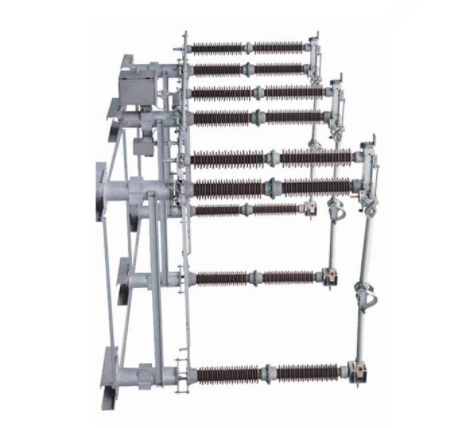

40.5-252kV 1250-4000A High Voltage Products IEC 62271-102 Outdoor

Features:

• Compact design

• All steel parts either in stainless steel or hot-dip galvanized

• Solid and stable base frame

• Main contact with icing protection

• Insulators available in porcelain or alternatively in silicone

• Minimal sag for the line-connection thanks to the two fixed terminals

• Completely maintenance antirust AL alloy -Arc chamber

• Switching-off procedure without external arc

• Short circuit making capacity under specific conditions possible

• Easy on-site installation and setting

• High reliability: up to 1’000 cycles (depending on the making current)

• All conducting parts either silver, nickel or tin-plated

• Practically maintenance-free

Baikong electric was born and developed well Sichuan Baikong Electrical Technology Co., Ltd is a complete set of high and low voltage power distribution equipment automation equipment, set production, research and development and sales Import and export services and other integrated enterprises, the company is headquartered in Pengzhou Industrial Park, Chengdu City.The company's main products are box-type substation Medium and high voltage power transmission and distribution equipment, low voltage power distribution equipment, fire electrical equipment, intelligent industrial electrical equipment, new energy and energy storage electrical equipment, metering and protection power distribution equipment, high and low voltage complete switchgear, high voltage ring network cabinet, cable branch box,SF6 inflatable cabinet, etc.
