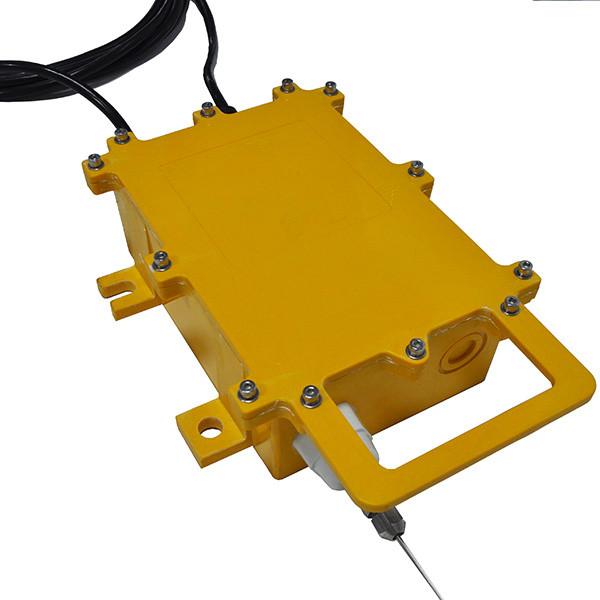

Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections
Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections
Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections
Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections
Specifications
Brand Name :
DIXIN
Model Number :
DX-AIS-01
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
AIS AtoN
IP Level :
IP68
Operating Temperature :
-35°C to +°60C
Operating Voltage :
8 to 32 V DC
Size (mm ) :
281X180X69mm
Warranty :
3 years
Message Format :
NO.6 and NO.21
Message Type :
Type 3
Description

IP68 Fiberglass Enclosure AIS Marine AtoN with External Power and Lantern Connections​

Product Overviews:

Designed specifically for buoys and fixed structures, our fully compliant AIS transponder is engineered to enhance maritime safety and communication. Encased in a rugged, weather-resistant housing, this device is built to withstand the toughest marine environments.

Featuring an integrated GPS module, our AIS transponder ensures precise location tracking and seamless operation. It also offers versatile connectivity options, supporting external power supply, solar panel integration, and lantern connection, making it adaptable to a wide range of applications.

Equip your marine operations with a reliable and durable AIS transponder that not only meets international standards but also provides the advanced functionality needed for efficient and safe navigation.

Features:

  • IP68 Rugged Enclosure: Designed to withstand harsh conditions with complete dust and water protection.
  • Integrated GPS: Built-in GPS module for accurate tracking and location data.
  • External Power Input: Supports connection to an external DC power source for versatile power options.
  • Advanced Battery Management: Intelligent system compatible with both lead-acid and lithium batteries, optimizing charging and discharging processes.
  • Solar Compatibility: Ready to connect with solar panels for eco-friendly energy use.
  • Lantern Support: Allows connection to external lanterns for enhanced visibility in various applications.
  • Message Support: Compatible with message types #6 and #21, ensuring effective communication.
  • Wide Voltage Operation: Operates efficiently within a voltage range of 8 to 32 VDC, offering flexibility in different setups.

Specifications:

Genaral Spec Body material Fiberglass
Bracket Material S316 tainless steel aluminum
Operating temperature range -35°C to +°60C
IP Rating IP68
Operating Voltage 8 to 32 V DC
Solar recharge current ≤10A
Lantern discharge current ≤10A
Size (mm ) 281X180X69mm
Life time 10 years
Weight 2KGS
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format Messages No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna


Dimension Drawing:

Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections

Applications:

Buoy,beacon,bridge,light tower and other fixed structures

Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections

Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections

Quality Control:

ISO9001, 14001, 45001
Fiberglass Enclosure AIS Aids To Navigation With External Power And Lantern Connections

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
