IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures
IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures
IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures
IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures
Specifications
Brand Name :
DIXIN
Model Number :
DX-AIS-01
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
AIS AtoN
IP Level :
IP68
Operating Temperature :
-35°C to +°60C
Warranty :
3 Years
Size (mm ) :
281X180X69mm
Weight :
2KGS
Life time :
10 years
Message format :
Messages No. 21 and 6
Operating type :
Type three
AIS antenna :
Included, high gain omnidirectional antenna
Description

IP68 AIS Marine Aids to navigation for buoys and fixed structures

Product Overviews:

This advanced marine Aid to Navigation (AtoN) is designed specifically for buoys and fixed structures.


A fully compliant AIS transponder,

Housed in a rugged protected housing, integrated GPS module,

support external conenction of power supply, solar panel and lantern.

This robust system is built to withstand harsh marine environments, providing reliable navigation and safety solutions.

Features:

  • Rugged Enclosure: Designed with an IP68-rated housing,ensuring maximum protection against dust and water ingress, making it suitable for harsh environments.
  • Integrated GPS Module: Built-in GPS module for accurate positioning and tracking, seamlessly housed within the unit.
  • External Power Input: Equipped with an external DC power supply input for reliable power connectivity.
  • Smart Battery Management: Advanced battery management system supporting both lead-acid and lithium batteries, optimizing charging and discharging processes for extended battery life.
  • Solar Panel Compatibility: Supports connection to solar panels, enabling sustainable and independent power generation.
  • External Lantern Support: Compatible with external lanterns for enhanced visibility and signaling.
  • Message Support: Fully supports AIS messages No. 6 and No. 21 for efficient communication and data transmission.


Specifications:

Genaral Spec Body material Fiberglass
Bracket Material S316 tainless steel aluminum
Operating temperature range -35°C to +°60C
IP Rating IP68
Operating Voltage 8 to 32 V DC
Solar recharge current ≤10A
Lantern discharge current ≤10A
Size (mm ) 281X180X69mm
Life time 10 years
Weight 2KGS
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format Messages No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna

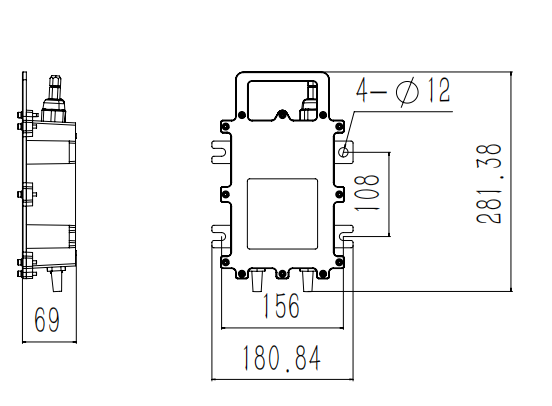

Dimension Drawing:

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures

Applications:

Buoy,beacon,bridge,light tower and other fixed structures

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures

Quality Control:

ISO9001, 14001, 45001
IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
