GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure
GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure
GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure
GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure
Specifications
Brand Name :
DIXIN
Model Number :
DX-GRPSNL-02-G
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
GPRS marine lantern
Visible Range :
3-7NM available
Communication Networks :
4G or 5G
Transmition Consumption :
≤2W
Solar module type :
Mono crystalline Silicon
Solar output :
4X7W
Description

7NM Self Contained GPRS LED Marine Lantern Solar Powered For Fixed Structure

Product Overviews:

This Fixed Self-Contained Marine Lantern with GPRS is optimized for use on fixed marine structures

such as lighthouses and offshore platforms, offering robust visibility up to 7 NM. Designed to endure extreme weather conditions,

it incorporates a weather-resistant LED light source, GPRS communication, and GPS tracking capabilities.

The lantern's energy-efficient system includes four solar panels and a sizable battery,

ensuring reliable, independent operation with minimal maintenance requirements and enhanced navigational safety.


Features and benefits:

  • Resilient Housing: Fiberglass with UV, shock, and corrosion resistance.
  • High IP Rating: IP68 rated, with an optical range of up to 7 nautical miles.
  • Self-Contained Unit: Features GPRS module, LED light, solar power, and battery in one system.
  • Built-In GPRS: 4G/5G module for efficient data communication.
  • Powerful LED Array: High-intensity LEDs for bright, energy-efficient illumination.
  • Solar Panel Array: Equipped with four 7W panels for optimal solar energy use.
  • Large Battery Capacity: Offers various battery pack configurations for high capacity.
  • Long Autonomy: Operates without solar input for up to 25 days.
  • Automated Lighting: Digital sensor for automatic light management.
  • IALA Color Standards: Six colors available, including white, yellow, red, blue, green, and a combination of blue and yellow.
  • GPS Module Included: For synchronization and accurate positioning.
  • IALA Compliant Design: Conforms to IALA recommendations.
  • Remote and PC Control: Programming and operational status can be managed via PC or 433 MHz remote.


Specifications:

Phisical Spec Lens material Acrylic
Body material Fiberglass
Operating temperature range -35°C to +°65C
Humidity 0~100%
IP Rating IP68
Size (mm ) 240X240X455mm
Life time 10 years(excluding battery)
Weight ≤11KGS
Battery Spec Battery type Lithium iron phosphate
Battery nominal voltage 12.8V
Battery autonomy 25 days
Battery capacity 384Wh/512Wh/665Wh
Recharging power Typical 400 mA
Standby power 3mA current
Operating Voltage DC 10V—14.6V
Battery life 5 years
Solar Spec Solar module type Mono crystalline Silicon
Solar output 4X7W
Optical Spec Light Source LEDs
Light color Red/Green/Yellow/Blue/White/Yellow and blue
Visible Range 3-7NM available
Horizontal Output(degrees) 360°
Vertical Divergence(degrees) ≥2.5°
Light value 256 adjustable
Brightness adjustable in units of 1%
Operation Mode Built-in sensor, dark and day adjust automatically
LED Life Experience(hours) >100,000H
GPRS Spec Communication Networks 4G or 5G
Transmition Consumption ≤2W

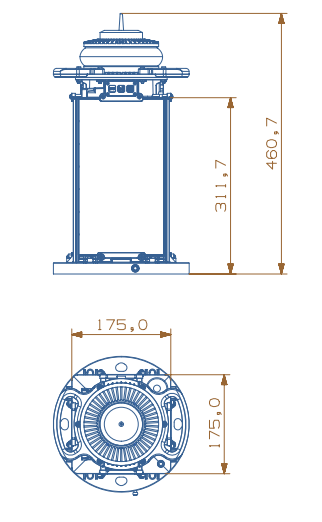

Dimension Drawing:


GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure

Applications:


GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure
GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure

Quality Control:

ISO9001, 14001, 45001

GPRS Self Contained 7NM LED Solar Marine Lantern For Fixed Structure

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
