Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof
Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof
Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof
Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof
Specifications
Brand Name :
DIXIN
Model Number :
DX-WL/AIS-02-G
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
Fixed self contained AIS and GPRS marine lantern
Battery type :
Lithium iron phosphate
Solar module type :
Mono crystalline Silicon
Light color :
Red/Green/Yellow/Blue/White/Yellow and blue
Operating temperature :
-35°C to +°65C
Size (mm ) :
240X240X455mm
Description

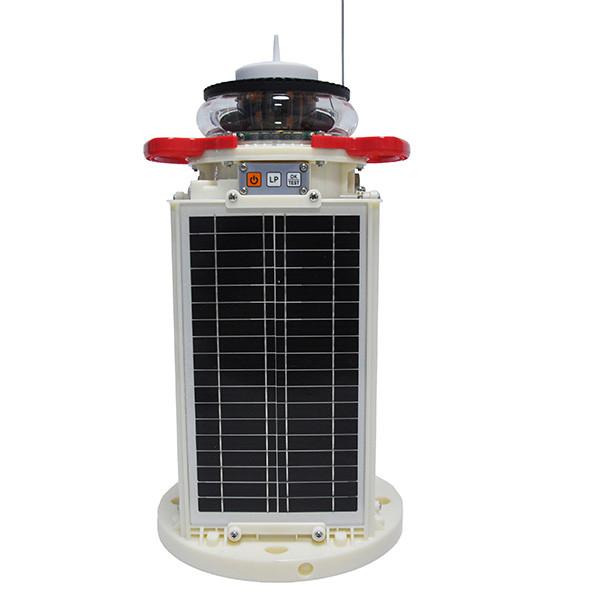

AIS and GPRS Fixed Aids To Navigation LED Marine Lantern Self Contained Solar Powered

Product Overviews:

Perfect for fixed structures,

the Fixed Self-Contained Solar Marine Lantern with AIS and GPRS delivers visibility up to 7 NM.

This weather-protected lantern incorporates a self-contained design with an AIS transponder Type 3,

GPRS module, LED light source, and GPS module.

With four solar panels and a substantial battery capacity, it ensures high energy efficiency and dependable operation.



Features and benefits:

  • Sturdy Design: UV-resistant, shockproof, and corrosion-proof fiberglass housing ensures exceptional durability.
  • IP68 Rating: Provides reliable waterproofing with an optical range up to 7 NM for all-weather performance.
  • Self-Contained Features: Includes an AIS transponder Type 3, GPRS module, LED light source, battery, and solar power supply.
  • Advanced AIS Capabilities: Supports AIS transponder Type 3 for both message transmission and reception.
  • Modern Communication: Built-in 4G/5G GPRS module facilitates effective data communication.
  • Efficient Illumination: High-intensity LED array offers energy-efficient and powerful lighting.
  • Robust Solar Power: Four 4X7W solar panels ensure a strong and reliable power source.
  • Long-Lasting Battery: High-capacity batteries provide up to 25 days of autonomy without solar charging.
  • Smart Sensor: Digital sensor for automatic light control, simplifying operation.
  • Compliant Color Options: Six colors meet IALA chromaticity requirements for versatile use.
  • Precise Timing: GPS synchronization with over 256 adjustable flash characters for accuracy.
  • Bird Deterrent: Integrated system to minimize bird-related issues.
  • Designed to Standards: Adheres to IALA Recommendations for effective marine navigation.

Specifications:

Phisical Spec Lens material Acrylic
Body material Fiberglass
Operating temperature range -35°C to +°65C
Humidity 0~100%
IP Rating IP68
Size (mm ) 240X240X455mm
Life time 10 years(excluding battery)
Weight ≤11KGS
Battery Spec Battery type Lithium iron phosphate
Battery nominal voltage 12.8V
Battery autonomy 25 days
Battery capacity 384Wh/512Wh/665Wh
Recharging power Typical 400 mA
Standby power 3mA current
Operating Voltage DC 10V—14.6V
Battery life 5 years
Solar Spec Solar module type Mono crystalline Silicon
Solar output 4X7W
Optical Spec Light Source LEDs
Light color Red/Green/Yellow/Blue/White/Yellow and blue
Visible Range 3-7NM available
Horizontal Output(degrees) 360°
Vertical Divergence(degrees) ≥2.5°
Light value 256 adjustable
Brightness adjustable in units of 1%
Operation Mode Built-in sensor, dark and day adjust automatically
LED Life Experience(hours) >100,000H
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna
GPRS Spec Communication Networks 4G or 5G
Transmition Consumption ≤2W

Dimension Drawing:


Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof

Applications:


Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof
Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof

Quality Control:

ISO9001, 14001, 45001

Fixed Aids To Navigation Self Contained Marine Lanterns Corrosion Proof

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
