IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder
IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder
IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder
IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder
Specifications
Brand Name :
DIXIN
Model Number :
DX-AISNL-02-G
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
Fixed self contained AIS marine lantern
Battery type :
Lithium iron phosphate
Light color :
Red/Green/Yellow/Blue/White/Yellow and blue
IP Rating :
IP68
Operation frequency :
161.975MHz, 162.025MHz
Modulation :
GMSK/FSK
Description

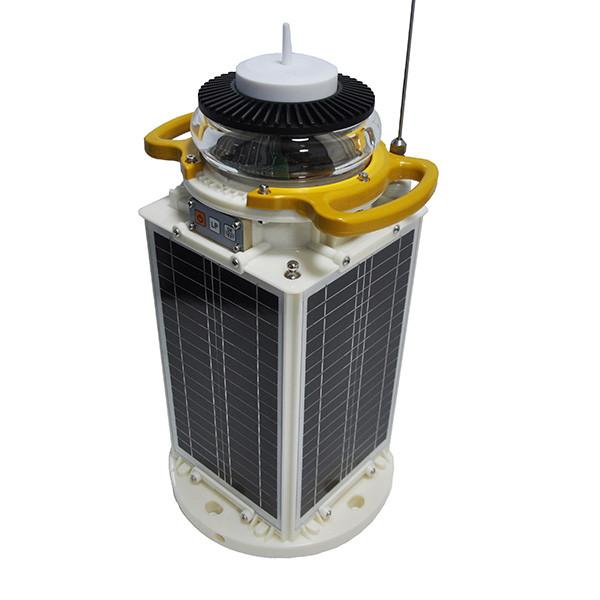

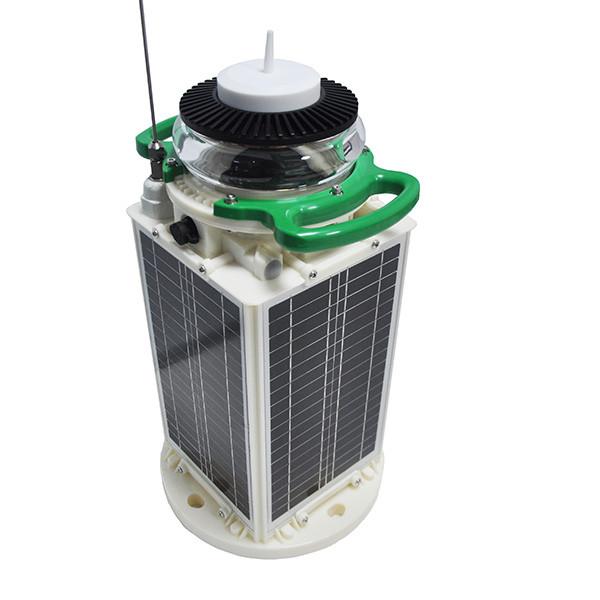

IP68 Fixed Self Contained Marine Lantern With Solar Powered And AIS Responder

Product Overviews:

Perfect for fixed structures, the Fixed Self-Contained Solar Marine Lantern with AIS delivers up to 7 NM of range.

Built to withstand harsh conditions, this weather-protected unit features an LED light source, an AIS transponder,

and a GPS module. With four solar panels and a large battery,

it provides superior energy efficiency and long-lasting performance



Features and benefits:

  • Sturdy Design: Fiberglass housing provides UV resistance, shockproof, and corrosion-proof qualities for long-lasting performance.
  • Waterproof Protection: IP68 rated with an optical range of up to 7 NM, ensuring dependable operation in all weather conditions.
  • Integrated AIS Functionality: Self-contained system with a built-in AIS transponder Type 3, supporting both message transmission and reception.
  • High-Intensity LED: Energy-efficient LED array provides powerful illumination, enhancing visibility.
  • Solar-Powered System: Four 4X7W solar panels ensure consistent and sustainable energy supply.
  • Reliable Battery Life: Multiple high-capacity battery pack options offer up to 25 days of autonomy without solar input.
  • Smart Lighting Control: Features a built-in digital sensor for automatic light activation and deactivation.
  • Color Versatility: Available in six IALA-compliant colors, including white, yellow, red, blue, green, and blue & yellow.
  • GPS Synchronization: Integrated GPS module ensures accurate timing with over 256 adjustable flash characters.
  • Bird Deterrent System: Built-in deterrent prevents bird-related disruptions.
  • Designed to Standards: Complies with IALA Recommendations for safe and effective marine navigation.


Specifications:

Phisical Spec Lens material Acrylic
Body material Fiberglass
Operating temperature range -35°C to +°65C
Humidity 0~100%
IP Rating IP68
Size (mm ) 240X240X455mm
Life time 10 years(excluding battery)
Weight ≤11KGS
Battery Spec Battery type Lithium iron phosphate
Battery nominal voltage 12.8V
Battery autonomy 25 days
Battery capacity 384Wh/512Wh/665Wh
Recharging power Typical 400 mA
Standby power 3mA current
Operating Voltage DC 10V—14.6V
Battery life 5 years
Solar Spec Solar module type Mono crystalline Silicon
Solar output 4X7W
Optical Spec Light Source LEDs
Light color Red/Green/Yellow/Blue/White/Yellow and blue
Visible Range 3-7NM available
Horizontal Output(degrees) 360°
Vertical Divergence(degrees) ≥2.5°
Light value 256 adjustable
Brightness adjustable in units of 1%
Operation Mode Built-in sensor, dark and day adjust automatically
LED Life Experience(hours) >100,000H
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna

Dimension Drawing:


IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder

Applications:


IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder
IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder

Quality Control:

ISO9001, 14001, 45001

IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.


IP68 Fixed Self Contained Solar Powered Navigation Lights With AIS Responder
