7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge
7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge
7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge
7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge
Specifications
Brand Name :
DIXIN
Model Number :
DX-AISNL-02-G
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
Fixed self contained AIS marine lantern
Battery type :
Lithium iron phosphate
Operation frequency :
161.975MHz, 162.025MHz
Modulation :
GMSK/FSK
Visible Range :
3-7NM available
Vertical Divergence :
≥2.5°
Description

7NM AIS Fiberglass Marine Navigation LED Lantern For Beacon Light Tower Bridge

Product Overviews:

Our Fixed Self-Contained Solar Marine Lantern with AIS is designed for use on fixed structures,

offering a dependable range of up to 7 NM.

This all-in-one, weather-protected solution includes an LED light source, AIS transponder, and GPS module.

Powered by four solar panels and a large battery, it guarantees high energy efficiency for extended operation



Features and benefits:

  • Durable Housing: UV-resistant, shockproof, and corrosion-proof fiberglass construction ensures durability in marine environments.
  • IP68 Waterproof Rating: Provides waterproof protection with an optical range extending up to 7NM.
  • AIS Integration: Self-contained design with a built-in AIS transponder Type 3, supporting message transmission and reception for enhanced communication.
  • Efficient LED Lighting: High-intensity LED array offers energy-efficient illumination for optimal visibility.
  • Powerful Solar Panels: Four 4X7W solar panels provide sustainable energy, reducing reliance on external power sources.
  • Long Battery Life: High-capacity battery packs ensure up to 25 days of autonomy without solar recharging.
  • Automatic Operation: Built-in digital sensor for convenient automatic light on/off control.
  • Color Options: Available in six IALA-compliant colors, meeting diverse navigational needs.
  • Precision Timing: Integrated GPS synchronization module with over 256 adjustable flash characters for precise control.
  • IALA Compliance: Designed according to IALA Recommendations for reliable and effective navigation aids.
  • Remote Control: Easily programmable via PC or 433 remote control, providing convenient management.


Specifications:

Phisical Spec Lens material Acrylic
Body material Fiberglass
Operating temperature range -35°C to +°65C
Humidity 0~100%
IP Rating IP68
Size (mm ) 240X240X455mm
Life time 10 years(excluding battery)
Weight ≤11KGS
Battery Spec Battery type Lithium iron phosphate
Battery nominal voltage 12.8V
Battery autonomy 25 days
Battery capacity 384Wh/512Wh/665Wh
Recharging power Typical 400 mA
Standby power 3mA current
Operating Voltage DC 10V—14.6V
Battery life 5 years
Solar Spec Solar module type Mono crystalline Silicon
Solar output 4X7W
Optical Spec Light Source LEDs
Light color Red/Green/Yellow/Blue/White/Yellow and blue
Visible Range 3-7NM available
Horizontal Output(degrees) 360°
Vertical Divergence(degrees) ≥2.5°
Light value 256 adjustable
Brightness adjustable in units of 1%
Operation Mode Built-in sensor, dark and day adjust automatically
LED Life Experience(hours) >100,000H
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna

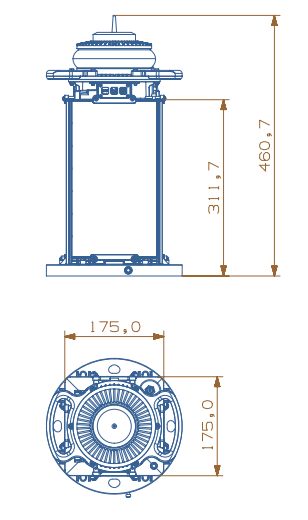

Dimension Drawing:


7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge

Applications:


7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge
7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge

Quality Control:

ISO9001, 14001, 45001

7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.


7NM AIS Fiberglass Solar Marine Navigation Lights For Beacon Light Tower Bridge
