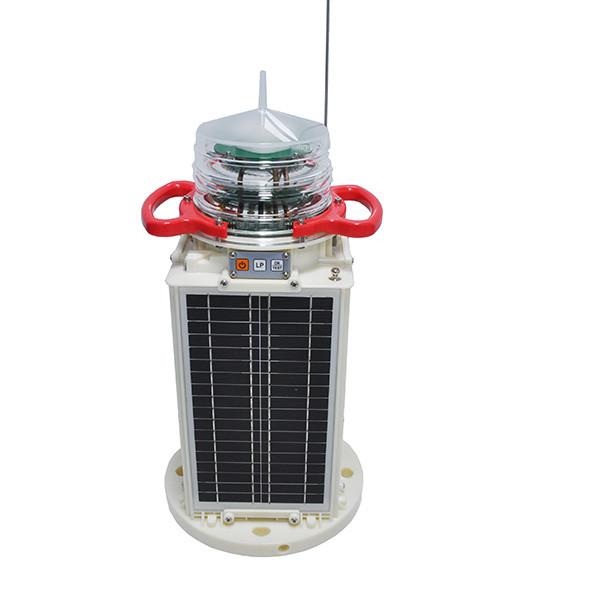

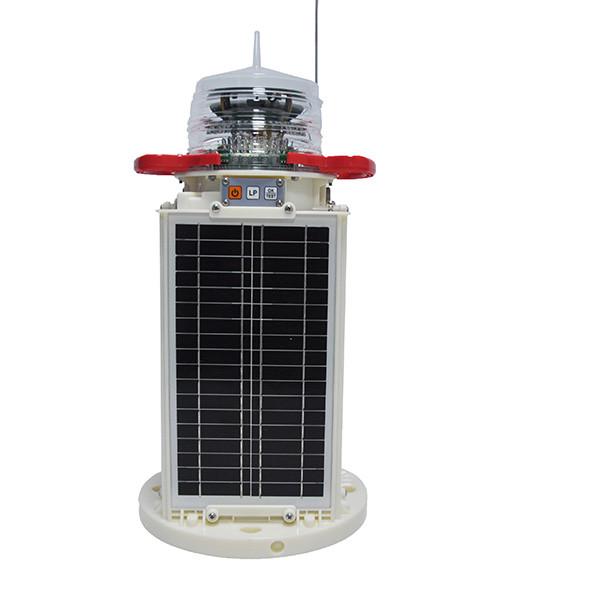

AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel
AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel
AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel
AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel
Specifications
Brand Name :
DIXIN
Model Number :
DX-WL/AIS-02
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
AIS and GPRS Solar Powered marine lantern
Communication Networks :
4G or 5G
IP Rate :
IP68
Operating temperature :
-35°C to +°65C
Battery capacity :
384Wh/512Wh/665Wh
Operating type :
AIS type 3
Description

AIS and GPRS Self Contained AtoN Buoy Navigation Marine LED Lantern With Solar Powered


Product Overviews:

For buoy applications,

the Floating Self-Contained Solar Marine Lantern with AIS and GPRS offers a range of up to 5 NM

and is built to withstand harsh weather conditions.

It features a self-contained LED light source along with integrated AIS, GPRS, and GPS modules.

The lantern’s four solar panels and extensive battery capacity ensure the highest energy efficiency

and reliable operation in various marine settings.


Features and benefits:

  • Fiberglass Housing: UV-resistant, shockproof, corrosion-proof, and IP68 rated.

    • Ensures maximum durability and protection in harsh marine environments.

  • Effective Optical Range: Up to 5 NM.

    • Provides reliable visibility for marine navigation.

  • Integrated Unit: Combines AIS, GPRS, LED light, battery, and solar power.

    • Offers a streamlined, all-in-one solution for efficient operation.

  • AIS Transponder Type 3: Supports transmission and reception.

    • Enhances maritime communication and safety.

  • Advanced GPRS Module: Built-in 4G/5G for high-speed data communication.

    • Facilitates real-time data management and remote access.

  • High-Efficiency Solar Panels: Four 4x7W panels for effective solar energy collection.

    • Guarantees continuous power supply and high energy efficiency.

  • Large Battery Capacity: Multiple options for extended power storage.

    • Provides long-lasting energy and flexible storage solutions.

  • High-Intensity LED Array: Energy-efficient and bright.

    • Delivers powerful illumination while optimizing energy use.

  • Automatic Light Management: Built-in digital sensor for light control.

    • Improves energy efficiency and reduces the need for manual adjustments.

  • IALA Color Compliance: Six colors (white, yellow, red, blue, green, blue & yellow).

    • Meets international standards for signaling.

  • Adjustable Flash Patterns: Over 256 customizable options.

    • Allows for tailored visual signaling.

  • GPS Synchronization: Module included for accurate timing.

    • Ensures precise coordination with other navigation aids.

  • Extended Operation: Up to 25 days autonomy without solar charging.

    • Provides reliable performance even in extended periods of low sunlight.

  • Bird Deterrent Integration: Built-in feature to prevent bird interference.

    • Helps maintain functionality and reduces upkeep.


Specifications:


Phisical Spec Lens material Acrylic
Body material Fiberglass
Operating temperature -35°C to +°65C
Humidity 0~100%
IP Rating IP68
Size (mm ) 240X240X489mm
Life time 10 years(excluding battery)
Weight 7.5-9.5KgKGS
Battery Spec Battery type Lithium iron phosphate
Battery nominal voltage 12.8V
Battery autonomy 25 days
Battery capacity 384Wh/512Wh/665Wh
Recharging power Typical 400 mA
Standby power 3mA current
Operating Voltage DC 10V—14.6V
Battery life 5 years
Solar Spec Solar module type Mono crystalline Silicon
Solar output 4X7W
Optical Spec Light Source LEDs
Light color Red/Green/Yellow/Blue/White/Yellow and blue
Visible Range 3-5NM available
Horizontal Output(degrees) 360°
Vertical Divergence ≥8°
Light value 256 adjustable
Brightness adjustable in units of 1%
Operation Mode Built-in sensor, dark and day adjust automatically
LED Life Experience(hours) >100,000H
GPRS Spec Communication Networks 4G or 5G
Transmition Consumption ≤2W
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna


Dimension Drawing:


AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel

Applications:


AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel

Quality Control:

ISO9001, 14001, 45001

AIS And GPRS Self Contained Solar Marine Navigation Lights With Solar Panel

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
