Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer
Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer
Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer
Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer
Specifications
Brand Name :
DIXIN
Model Number :
DX-WDS2
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
Ultrasonic Wind Speed & Direction Anemometer
Analogue output :
Two ways 4-20mA Max.load 500Ω
Protection grade :
IP65
Operating Temperature :
-40℃ - +70℃
Power supply :
DC 5－30V
Body material :
ASA
Description

Robust Light Weight Ultrasonic Wind Speed And Direction Anemometer For wind station​



Product Overviews:

The DX-WDS2 ultrasonic anemometer offers significant advantages, including its lightweight, sturdy construction,

and the absence of moving parts, which means no on-site maintenance or calibration is required.

It can output wind speed and direction data simultaneously, making it highly efficient.

This anemometer is designed to integrate easily with PCs, data loggers,

and other devices that share compatible communication protocols.

Users can also enhance its functionality with optional modules like a barometric pressure sensor or a 3D module to measure vibrations,

all without changing the device's appearance. As a sophisticated piece of equipment for wind speed measurement,

the ultrasonic anemometer addresses the shortcomings of mechanical models, allowing for continuous, long-term operation.

Its growing use across various sectors highlights its effectiveness as a superior alternative to mechanical anemometers.



Key Features:

  • Simultaneous measurement of wind velocity and direction.
  • ASA material ensures excellent weather resistance, ideal for outdoor environments.
  • Features high resistance to UV rays, corrosion, heat, and chemicals, ensuring longevity.
  • Lightweight and sturdy with a design that requires no maintenance or calibration.
  • Delivers real-time wind speed and direction data.
  • Compatible with PCs, data loggers, and other devices with suitable communication protocols.
  • Customizable with optional modules without changing the device's exterior.


Specifications:

Wind speed

 Range 0 - 60m/s
Accuracy ±2%
Resolution 0.01m/s
Unit m/s,km/h,knots,mph,ft/min (selectable)

Wing direction

 Measure Range 0-359°
intersection angle with geographic north 0-359°
Accuracy ±3°
Resolution 1°
Digital output Interface RS232/RS485/SDI-12
Baud rate

9600(default)

1200-19200(configurable)
Frequency

Standard: 1Hz (1 output per second)

Customized:4Hz(4 outputs per second)
protocol ModBus-RTU/NMEA 0183/SDI-12

Analogue output

(current output is optional)

 Two ways 4-20mA Max.load 500Ω
Protection grade IP65
Operating Temperature -40℃ - +70℃
Operating Humidity 0 - 100%
Power supply DC 5－30V
Power Consumption

5mA@12V(Heater off)

125mA@12V(Heater on)
Size/Weight Φ144×165mm / 0.68kg
Body material ASA

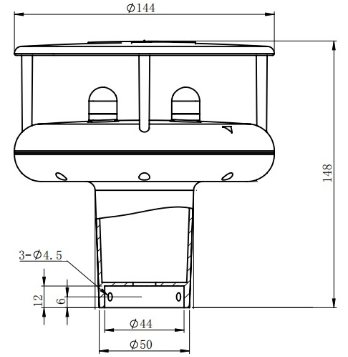

Dimension Drawing:


Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer



Applications:

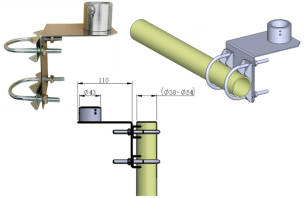

Normally,DX-WDS2 is installed on a vertical pole horizontally

For indoor use, sensor can be installed anywhere to measure wind speed and direction of corresponding plane.

Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer





Quality Control:

ISO9001, 14001, 45001

Light Weight Ultrasonic Wind Speed Sensor DC 30V For Direction Anemometer

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
