5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker
5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker
5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker
5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker
Specifications
Brand Name :
DIXIN
Model Number :
DX-GRPSNL-02
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
GPRS buoy marine lantern
Solar Output :
4X7W
Battery type :
Lithium iron phosphate
Communication Networks :
GPRS 4G or 5G
Visible Range :
3- 5NM
Warranty :
3 Years
Description

3-5NM GPRS Communicated Solar Powerd LED Marine Lantern For Buoy Marker

Product Overviews:

The Floating Self-Contained GPRS Lantern is designed for buoy applications,
offering a reliable range of up to 5 nautical miles.

This weather-protected lantern features a built-in GPRS communication module,
ensuring effective data transmission and reception. Its self-contained system includes a high-efficiency LED light source,
four solar panels for optimal energy collection, and both GPRS and GPS modules.

With a large battery capacity, this lantern provides the highest energy efficiency
and dependable performance in various marine conditions.

Features and benefits:

  • Durable Marine Construction: Features a fiberglass housing with UV resistance, shockproof, and corrosion-proof properties, and is IP68 rated for maximum durability.
  • Powerful Illumination: Provides an optical range of up to 5 nautical miles with a high-intensity, energy-efficient LED array.
  • Integrated Power and Communication System: Combines a 4G/5G GPRS module, LED light, battery, and solar power supply into a self-contained unit, ensuring efficient data communication and operation.
  • Efficient Solar and Battery System: Equipped with four 4X7W solar panels and a high-capacity battery with multiple pack options, offering up to 25 days of autonomy without solar charging.
  • Smart Features and Versatility: Includes a built-in digital sensor for automatic light control, supports six IALA colors, more than 256 adjustable flash characters, GPS synchronization, and programmable settings via PC or remote control. Designed to IALA recommendations with an integrated bird deterrent and a high-gain omnidirectional antenna for extended service life.



Specifications:

Phisical SpecLens materialAcrylic
Body materialFiberglass
Operating temperature-35°C to +°65C
Humidity0~100%
IP RatingIP68
Size (mm )240X240X489mm
Life time10 years(excluding battery)
Weight7.5-9.5KgKGS
Battery SpecBattery typeLithium iron phosphate
Battery nominal voltage12.8V
Battery autonomy25 days
Battery capacity384Wh/512Wh/665Wh
Recharging powerTypical 400 mA
Standby power3mA current
Operating VoltageDC 10V—14.6V
Battery life5 years
Solar SpecSolar module typeMono crystalline Silicon
Solar output4X7W
Optical SpecLight SourceLEDs
Light colorRed/Green/Yellow/Blue/White/Yellow and blue
Visible Range3-5NM available
Horizontal Output(degrees)360°
Vertical Divergence(degrees)≥8°
Light value256 adjustable
Brightnessadjustable in units of 1%
Operation ModeBuilt-in sensor, dark and day adjust automatically
LED Life Experience(hours)>100,000H
GPRS SpecCommunication ModuleNetworks 4G or 5G
Transmition Consumption≤2W

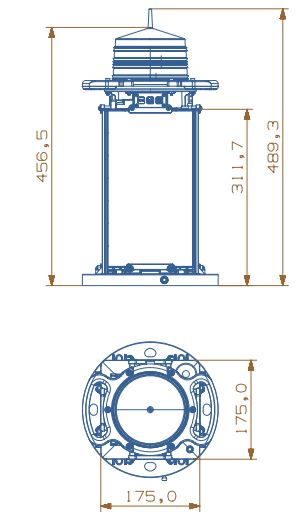

Dimension Drawing:


5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker

Applications:


5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker

Quality Control:

ISO9001, 14001, 45001

5NM GPRS Communicated LED Marine Lantern Solar Powerd For Buoy Marker

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
