7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered
7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered
7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered
7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered
Specifications
Brand Name :
DIXIN
Model Number :
DX-WL/AIS-02-G
Certification :
ROHS,CE
Place of Origin :
China Chengdu
MOQ :
1 PC
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
Contact Us
Packaging Details :
Carton
Product Name :
Self contained AIS and GPRS marine lantern
AIS Message format :
No. 21 and NO.6,message periods are adjustable
Communication Networks :
4G or 5G
Battery autonomy :
25 days
Visible Range :
3-7NM
Warranty :
3 Years
Description

7NM Self Contained AIS And GPRS Communicated LED Marine Lantern Solar Powered

Product Overviews:

Enhance your maritime safety with our Fixed Self-Contained Solar Marine Lantern.

Engineered for fixed structures and offering a powerful range of up to 7NM,

this weather-protected lantern includes an AIS Type 3 transponder and a GPRS module, ensuring constant communication and monitoring.

The LED light source, coupled with four solar panels and a GPS module, delivers the highest energy efficiency,

while the large battery capacity supports prolonged use, making it a dependable choice for harsh marine environments.


Features and benefits:

  • Rugged Design: Weatherproof fiberglass housing that is UV resistant, shockproof, and corrosion-proof, with an IP68 rating.
  • Comprehensive Communication: Supports AIS transponder Type 3 and 4G/5G GPRS module, ensuring reliable data transmission and reception.
  • Efficient Power Management: Solar-powered with four 4x7W panels and a high-capacity battery, offering up to 25 days of operation without solar charging.
  • Customizable Lighting: High-intensity LED array with GPS synchronization, available in six IALA-approved colors, and over 256 programmable flash patterns.
  • Easy Configuration: Built-in digital sensor for automatic light control, integrated bird deterrent, and easy configuration via PC or remote control.


Specifications:

Phisical Spec Lens material Acrylic
Body material Fiberglass
Operating temperature range -35°C to +°65C
Humidity 0~100%
IP Rating IP68
Size (mm ) 240X240X455mm
Life time 10 years(excluding battery)
Weight ≤11KGS
Battery Spec Battery type Lithium iron phosphate
Battery nominal voltage 12.8V
Battery autonomy 25 days
Battery capacity 384Wh/512Wh/665Wh
Recharging power Typical 400 mA
Standby power 3mA current
Operating Voltage DC 10V—14.6V
Battery life 5 years
Solar Spec Solar module type Mono crystalline Silicon
Solar output 4X7W
Optical Spec Light Source LEDs
Light color Red/Green/Yellow/Blue/White/Yellow and blue
Visible Range 3-7NM available
Horizontal Output(degrees) 360°
Vertical Divergence(degrees) ≥2.5°
Light value 256 adjustable
Brightness adjustable in units of 1%
Operation Mode Built-in sensor, dark and day adjust automatically
LED Life Experience(hours) >100,000H
AIS Spec Operation frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
Frequency error ±0.5kHz
Transmission power ≤12.5W
Average power consumption ≤0.05W
Message format No. 21 and NO.6,message periods are adjustable
Operating type Type three (SOTDMA, autonomous working mode)
AIS antenna Included, high gain omnidirectional antenna
GPRS Spec Communication Networks 4G or 5G
Transmition Consumption ≤2W

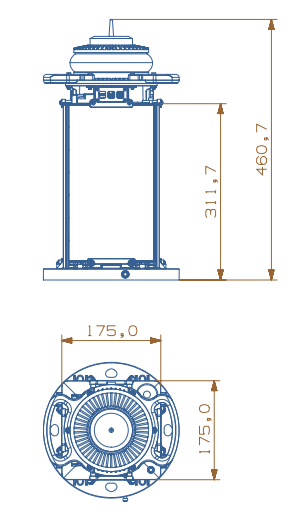

Dimension Drawing:


7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered

Applications:



7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered

Quality Control:

ISO9001, 14001, 45001

7NM AIS And GPRS Communicated Marine LED Lantern 5G with Solar Powered

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
