Specifications
Place of Origin :
Guangdong China (Mainland)
Brand Name :
Oky Newstar
Model Number :
OKY2152
MOQ :
1 Piece/Pieces
Packaging Details :
Different anti-static package at optional: 1. Full or partial package according as your requirement. 2. Retailing Box package design according to your requirement ( Order > 2000PCS )
Delivery Time :
3-5 workdays after payment
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Day
Price :
USD4.27-4.85/piece
Driver chips： :
L293D dual H-bridge DC motor driver chip
Terminal of driven part supply range Vs： :
+5 V ~ +16 V
Take power from the plate Supply area Vs :
+6 V ~ +16 V
The peak current of driven part Io: :
1A
Description

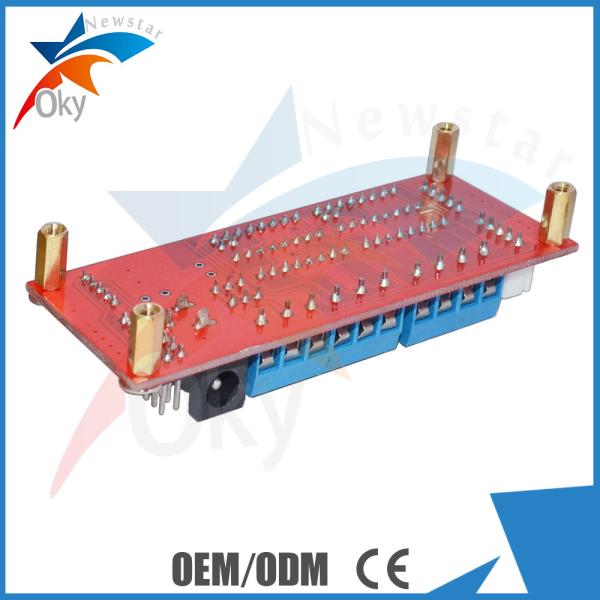

Four DC Motor Driver Module for Arduino , SMT L293D Chip 4WD car L293D modules

Specifications:

The drive module can directly drive four DC motors, drive the car chassis is 4WD 4 choice. Driving battery big up to 1A generally smart car motor current 100-300MA only four are sufficient to meet the control requirements. While leaving Road stepper motor interface can drive Road five line four-phase stepper motor or Road, two-phase four-wire stepper motor, very suitable for precise control requirements.

Leaving the corresponding interface can be directly connected to the steering gear, infrared obstacle avoidance and other peripherals. While leaving charger interface, bouncing switch, hand into the charger to charge rechargeable batteries. Very convenient!

The four DC motor driver module, using ST's original new L293D chip, SMT technology, high stability, high quality aluminum electrolytic capacitors, the circuit stability. Can directly drive 4-way 3-16V DC motor, and provides a 5V output interface (input as little as 6V), you can give 5V microcontroller circuit system power supply (low ripple factor), support 3.3V MCU ARM control, you can easily control DC motor speed and direction can be controlled two-phase stepper motor, 5-wire 4-phase stepper motor. Is a 4 car, smart car essential tool.

4 DC motor driver module / 4WD car / L293D module for Arduino Smart Car Robot

Features:

Driver chips: L293D dual H-bridge DC motor driver chip
Terminal of driven part supply range Vs: +5 V ~ +16 V
Take power from the plate Supply area Vs +6 V ~ +16 V
The peak current of driven part Io: 1A
Logical part of the operating current range 0 ~ 36mA
Signal input control voltage range IN1/2/3/4/5/6/7/8
Signal input enable voltage range EN1 EN2 EN3 EN4
Maximum power consumption 20W (temperature T = 75°C)
Board Size Size: 38mm * 91mm

Competitive Advantage:

1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment

Photos:

Four DC Motor Driver Module for Arduino , SMT L293D Chip 4WD car L293D modules

Four DC Motor Driver Module for Arduino , SMT L293D Chip 4WD car L293D modules

Four DC Motor Driver Module for Arduino , SMT L293D Chip 4WD car L293D modules
