2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
2.4 SPI Serial 320X240 TFT Touch Display Module For Arduino
Specifications
Brand Name :
OEM
Model Number :
OKY4031-1
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD$4.60-5.29/PCS
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
10000PCS
Delivery Time :
1-3 working days
Packaging Details :
Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)
Name :
2.4" SPI Serial 320X240 TFT Touch Display Module For Arduino
Module PCB backplane size :
77.18x42.72(mm)
Resolution :
320*240 (Pixel)
Effective display area (AA area) :
36.72x48.96(mm)
Working temperature :
-20℃~70℃
Storage temperature :
-30℃~80℃
VCC power supply voltage :
3.3V~5V
Logic IO port voltage :
3.3V (TTL)
Size :
2.4(inch)
Type :
TFT
Description

2.4" SPI Serial 320X240 TFT Touch Display Module For Arduino

Description:


Display color: RGB 65K color
Size: 2.4(inch)
Type: TFT
Driver chip: ILI9341
Resolution: 320*240 (Pixel)
Module interface: 4-wire SPI interface
Effective display area (AA area): 36.72x48.96(mm)

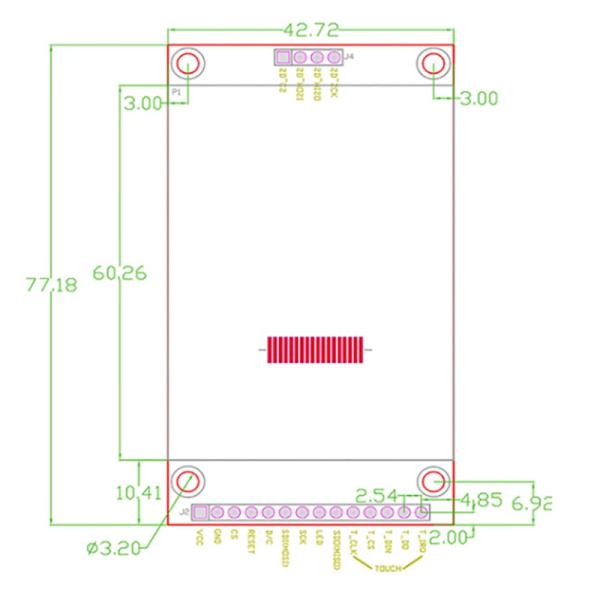

Module PCB backplane size: 77.18x42.72(mm)
Working temperature: -20℃~70℃
Storage temperature: -30℃~80℃
VCC power supply voltage: 3.3V~5V
Logic IO port voltage: 3.3V (TTL)
Power consumption: about 90mA

Features:

1. 2.4-inch color screen,support 65K color display,display rich colors.
2. Using the SPI serial bus, it only takes a few IOs to illuminate the display.
3. Easy to expand the experiment with SD card slot.
4. Provide a rich sample program.
5. Process standards, long-term stable work.

Photos:

2.42.42.4
