4 Pin HC-06 Wireless Transeiver Wifi Sensor Module For Smart Robot Car Projects

Description:

The HC-06 wireless module is a slave Blue wireless 2.0+EDR serial (UART) pass-through module. It can easily pair with a master Blue wireless device, but cannot pair with another slave device.

It can be connected to the serial pins on your A'board and serve as a wireless serial link, all without having to do anything except connect power, ground, Tx, and Rx. Once powered, the module automatically starts broadcasting its ID waiting for a master Blue wireless device to pair with it.

The module has an on-board voltage regulator which allows you to power the module with supply voltages of 3.6V to 6V.

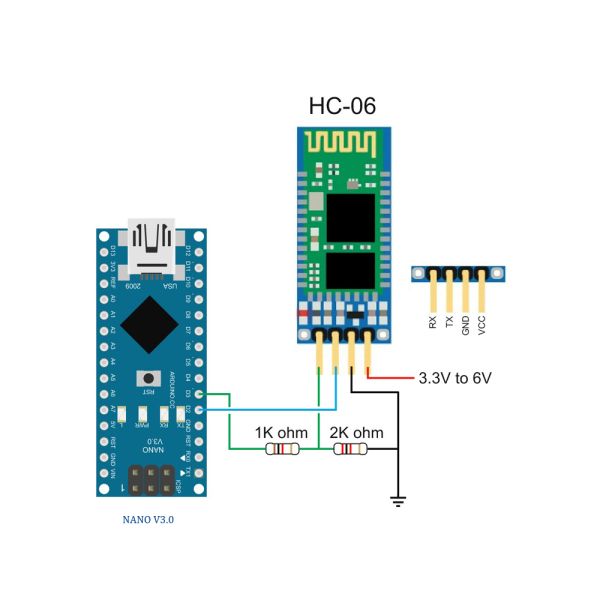

With a logic level of 3.3V you can directly connect this module to a Raspberry Pi but we recommend using a logic level converter when connecting it to 5V logic devices such as most A' boards.

Specification:

1.Default Baud Rate: 9600,8,1,n.
2.Built in antenna.
3.Coverage up to 30ft.
4.Bluetooth version: V2.0+EDR
5.Operating voltage: 3.3V
6.Default Baud Rate: 9600,8,1,n.
7.Signal coverage: 30ft
8.Item size: 4.3 * 1.6 * 0.7cm
9.Item weight: 3g
10.Package size: 9 * 3 * 1cm
11.Package weight: 8g
12.With LED indicator light, use 150mA and 3.3V regulation chip.
13.Input voltage: 3.3~6V
14.Size: 1.55cm*3.98cm

Package Included:

1 pc 4 Pin HC-06 Wireless Transeiver Wifi Sensor Module

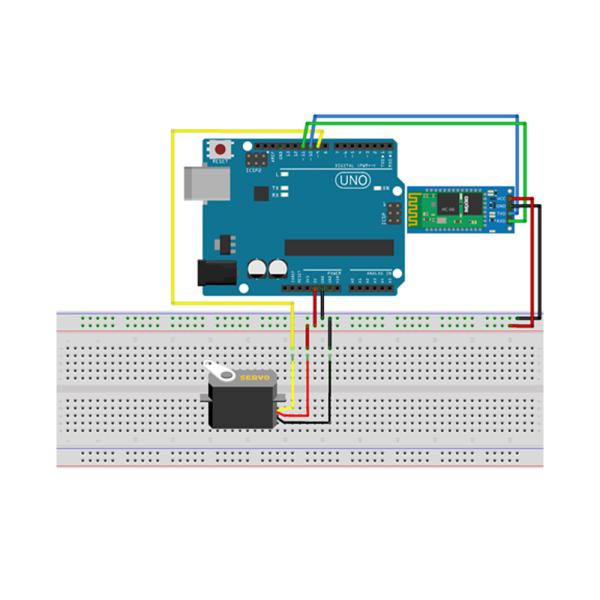

Experiment Picture:
