HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor
Specifications
Brand Name :
OEM
Model Number :
OKY3261
Certification :
CE
Place of Origin :
Guangdong China(Mainland)
MOQ :
10
Price :
USB $ 0.66-$0.75
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P, T/T
Supply Ability :
10000 pieces per week
Delivery Time :
1-3 work days after payment
Packaging Details :
Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)
Operating Voltage :
5V (Working Temperature: -20-80℃)
Static current :
Less than 2mA
Sensor angle :
Less than 15 degrees
Detection distance :
2cm-450cm
High precision :
Up to 3MM
Weight :
10g
Description

HC-SR04 Ultrasonic Sensor Distance Measuring Transducer Sensor

Description
porduct name

HC-SR04 Ultrasonic Sensor Distance Measuring Transducer Sensor

Main Features
This module performance is stable, measure the distance accurately. performance nearly the same as SRF05, SRF02 SRF05, SRF02 ultrasonic distance measuring module and other comparable. Module High precision, blind spots (2cm) super close
specifications
Voltage: DC 5V
Static current: less than 2mA
Electrical level output: 5V high
Electrical level output: at the end of 0V
Induction angle: not more than 15 degrees
Detection distance: 2cm-450cm
High precision: 2mm
Wiring: VCC, trig (control side), echo (receiving end), GND
Module works using IO trigger distance, the high signal to at least 10us
module automatically sends eight 40khz square wave, automatically detects whether a signal return;
a signal back, through the IO output a high electrical level, high electrical level duration is: the ultrasound time from launch to return. Test distance = (time of the high electrical level * speed of sound (340M / S)) / 2;
Product weight 10g

Package

Contents

 1 x HC-SR04 Ultrasonic Sensor

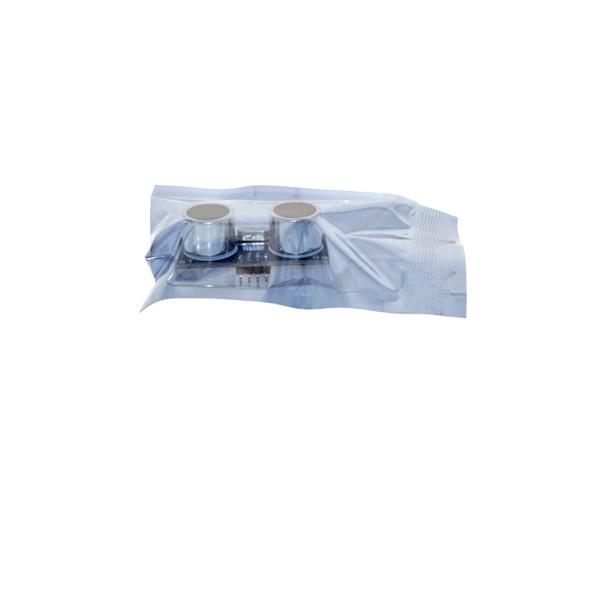

package Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)

Competitive

Advantages

 1. Convenient & Friendly Customer Service.
2. Low Prices Direct From Factory Suppliers.
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty.
6. Safe Shipping Way and Payment
Warm Note

Welcome ODM/OEM orders we are professional

to improve,design,process,manufacture products

according to your requirement .

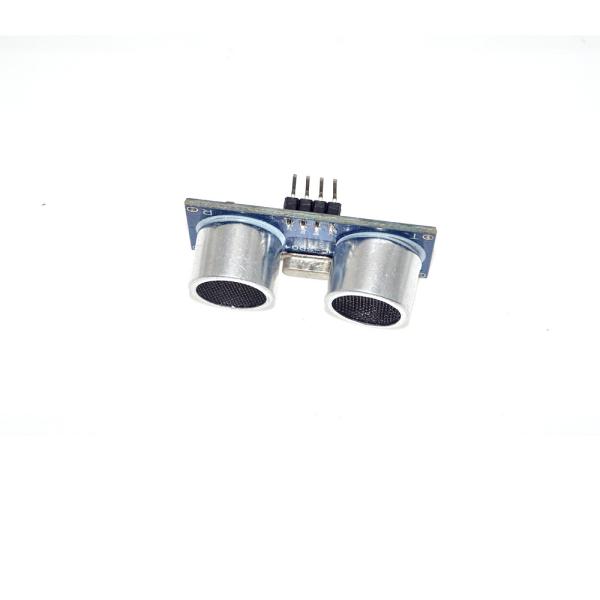

Photos:

HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer SensorHC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer SensorHC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer SensorHC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor

FAQ:

1. What is the delivery time?

Normally, 1-5 workdays after payment;

Special requirement orders, delivery time is negotiable.

2.If the products can’t work after receiving it,what should I do?

We will replace new items for you at once, and respect your final decision for wrong goods.

3.If the products don’t meet my demand after I received it,can I return it?

Yes,no problem.

You can return back to us, we will refund your full payment.
