Specifications
Brand Name :
OEM
Model Number :
OKY3430-0
Place of Origin :
Guangdong China(Mainland)
MOQ :
10
Price :
USD$2.02-$2.29 per piece
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P, T/T
Supply Ability :
10000 pieces per day
Delivery Time :
1-3 work days after payment
Packaging Details :
Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)
Product Name :
1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201
Working voltage range :
DC 5~18 v
Size :
39mm*17mm
Weight :
10g
Factory :
Yes
Company History :
13 years
Available :
DIY project,student,engineer,programmer
Description

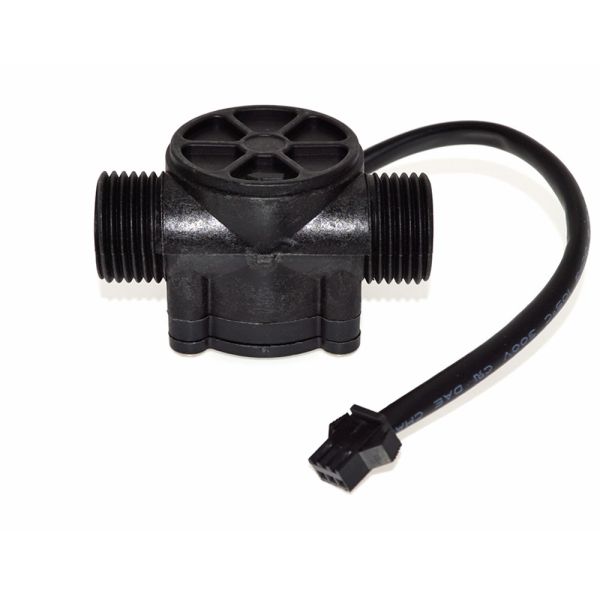

1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201

Features:

Flowmeter with G1/2 Threads - simple output to measure the flow rate of water or other non-flammable liquids

Great for use with Arduinos or other microcontrollers - may also be used for gases with some adjustment for density

1/2" Pipe Threads, Hall Effect Sensor interface, 1-30L/min 1.2MPa Capacity

1. The lowest rated working voltage: DC4.5 5V-24V
2. Maximum operating current: 15 mA (DC 5V)
3. Working voltage range: DC 5~18 v
4. Load capacity: ≤ 10 mA (DC 5V)
5. Use temperature: ≤ 80 ℃
6. Operating humidity range: 35%~90%RH (no frost)
7. Aallowing pressure: pressure 1.2Mpa
8. Temperature: -25~+80 ° c
9. External threads: 1/2"
10. High amplitude ≥ 4.6V
11. Low amplitude ≤ 0.5V
12. Electric strength 1250V/min
13. Insulation resistance ≥ 100MΩ
14. Hydrostatic pressure testing ≤ 2.0Mpa
15. External Threads: 1/2"

Package Included:

1pcs 1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201

FAQ:

1. What is the delivery time?

Normally, 1-5 workdays after payment;

Special requirement orders, delivery time is negotiable.

2.If the products can’t work after receiving it,what should I do?

We will replace new items for you at once, and respect your final decision for wrong goods.

3.If the products don’t meet my demand after I received it,can I return it?

Yes,no problem.

You can return back to us, we will refund your full payment.
