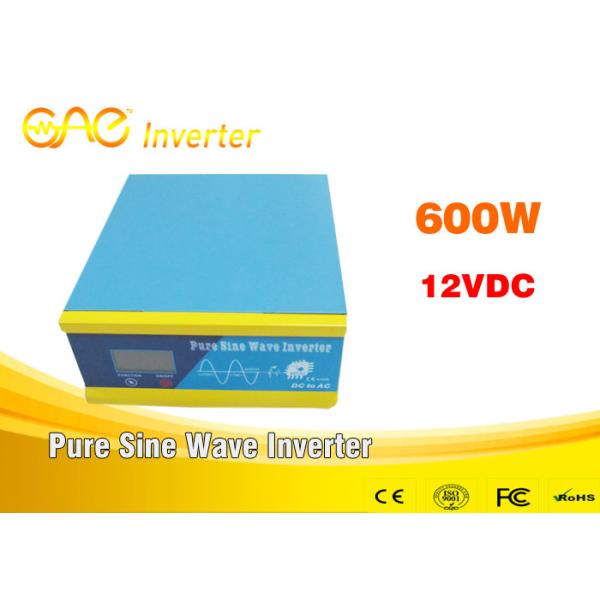

high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter
Specifications
Brand Name :
Top One Power
Model Number :
LI-60112
Certification :
CE FCC
Place of Origin :
Guangdong
MOQ :
20 pieces
Price :
USD 65 ~ 68
Payment Terms :
T/T
Supply Ability :
6000 pieces / month
Delivery Time :
10 work days ( According to the order quantity )
Packaging Details :
carton
Rated Power :
600W
Peak Power :
1200W
Nominal battery voltage :
12VDC
Low battery alarm :
≤10.5VDC (12V) / ≤21VDC (24V) / ≤42VDC (48V) / ≤84VDC (96V) / ≤168VDC (192V) alarm
Output frequency :
(DC battery mode) 60/50Hz±1%
Output wave form :
Pure sine wave
Description

high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter

Model : LI-60112

Strong loading capacity, which provides the true onetime soft start.

Top One:

Helped by the highly optimized circuit structures, original electronic components and high-tech DSP program, full range of all our models can achieve maximum power loading by only onetime soft start. For example, 2000W inverter can onetime start directly with 2000W power loading.

Other:

Due to the limitations of hardware and software technology, the loading way is gradually increasing. For example, to start a 1000W loading, their inverter requires 200W + 300W + 500W to superimpose the loading to 1000W.

Original electronic components

New and original electronic components are used for internal parts including capacitors, resistors, transformers, MOSFETs, etc., We import U.S. brand Infineon IR MOSFETs with certificate of origin, batch and date of production, which guarantees original and high quality.

high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter

LCD HD display:

This series is equipped with high-definition LCD display,

Real-time display the status of machine . Make sure that you can be the first time to know the actual status of the machine.

high efficiency 93% Solar Inverter Online 12v dc 220v ac single phase output 600w solar inverter

LI Series Low Frequency Pure Sine Wave Inverter (220V)
Model LI-351 LI-501 LI-601 LI-102 LI-152 LI-202 LI-302 LI-502 LI-702 LI-103 LI-153 LI-203
Rated Power 350W 500W 600W 1KW 1.5KW 2KW 3KW 5KW 7KW 10KW 15KW 20KW
Peak Power 700W 1000W 1200W 2KW 3KW 4KW 6KW 10KW 14KW 20KW 30KW 40KW
Nominal battery voltage 12VDC 12VDC/24VDC 24VDC/48VDC 48VDC 96VDC 192VDC
Input DC input range 10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V) / 84-120VDC (96V) / 168-240VDC (192V)
AC Mains input range (220/230/240VAC) 140-275VAC 170-250VAC
AC input frequency 50Hz: 45-65Hz / 60Hz: 55-65Hz (50Hz/60Hz automatic recognition)
Protection Low battery alarm ≤10.5VDC (12V) / ≤21VDC (24V) / ≤42VDC (48V) / ≤84VDC (96V) / ≤168VDC (192V) alarm
Low battery protection ≤10VDC (12V) / ≤20VDC (24V) / ≤40VDC (48V) / ≤80VDC (96V) / ≤160VDC (192V) automatic shutdown
High battery alarm ≥15VDC (12V) / ≥30VDC (24V) / ≥60VDC (48V) / ≥120VDC (96V) / ≥240VDC (192V) alarm
High battery protection ≥17VDC (12V) / ≥34VDC (24V) / ≥68VDC (48V) / ≥136VDC (96V) / ≥272VDC (192V) automatic shutdown
Over load protection 110% more than rated capacity, automatic shutdown
High temperature Built-in temperature real time sensor, ≥85℃ alarm, ≥90℃ automatic shutdown
Short circuit protection Automatic shutdown
Output Transfer efficiency ≥85%
Output voltage (DC battery mode) 220/230/240VAC±2%
Output frequency (DC battery mode) 60/50Hz±1%
Output wave form Pure sine wave
Output voltage (AC mains mode) stable 220/230/240VAC±10% output (built-in AVR stablizer)
AVR output stablizer AC mains<140VAC±5% swtich to DC battery mode, AC mains>150VAC ±5% return to AC mains mode;
AC mains>275VAC±5% swtich to DC battery mode, AC mains<255VAC ±5% return to AC mains mode;
The above is for output 220V system reference, 230V/240V output just multiply by percentage
Output frequency (AC mains mode) automatic tracing from AC input
Other Transfer time ≤10ms
Display LCD Display with function buttons
Cooling system Intelligent cooling fan control system
≤42℃ slow fan, ≥45℃ fast fan
AC Charger AC charging Voltage 13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V)/108.8-113.6VDC(96V)/217.6-227.2VDC(192V)
AC charging current Steady 15A
AC over charge protection Battery ≧16V (12V) ≧32V (24V) ≧64V (48V) ≧128V (96V) ≧256V (192V), stop charging after 60s alarm
Working mode
(Optional)		 01 AC mains priority
Always use AC mains as priority input to provide AC output and automatically charge the battery,
only stops charging when battery is fully charged, and only starts DC to AC converting untill AC mains is off
02 Energy saving
Loading≤10% automatic shutdown, loading≥11%-100% automatic turn on
03 DC battery priority
Always use DC battery as priority input to provide AC output, for 12V system, when battery≥13V, starts DC to
AC converting; when battery≤10.5V during converting, switch to AC mains mode to provide AC output and
automatically start charging the battery (for 24V/48V/96V/192V system, multiply by 2/4/8/16 accordingly)
Comnunication RS-232/USB/SNMP(additional option)
Environment Temperature -20~75℃
Humidity ＜95%
Appearance Product size (mm) 300*240*120 410*225*410 485*300*655
Packing size (mm) 　 　 　
Net Weight (kg) 7.2 7.5 7.5 8.7 23.5 25.5 28.8 55 56 85 105 125
Gross Weight (kg) 　 　 　 　 　 　 　 　 　 　 　 　
*Product specifications are subject to change without further notice
