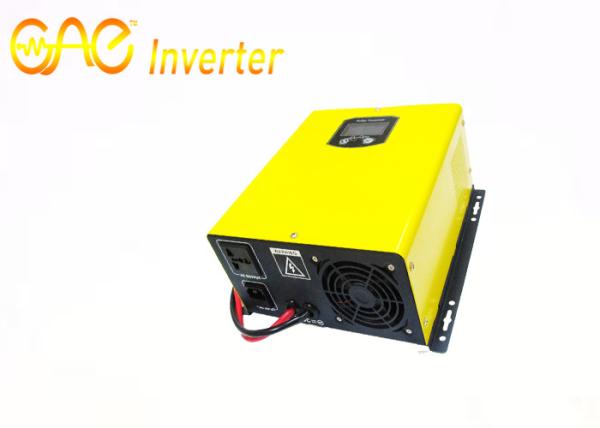

High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger
Specifications
Brand Name :
Top One Power
Model Number :
HI-12224
Certification :
CE FCC
Place of Origin :
Guangdong
MOQ :
20 pieces
Price :
USD 169 ~ 177
Payment Terms :
T/T
Supply Ability :
6000 pieces / month
Delivery Time :
10 work days ( According to the order quantity )
Packaging Details :
carton
Rated Power :
1.2KW
Peak Power :
2.4KW
Nominal battery voltage :
12VDC/24VDC
High temperature :
Built-in temperature real time sensor, ≥85℃ alarm, ≥90℃ automatic shutdown
AC over charge protection :
Battery ≧16V (12V) ≧32V (24V) ≧64V (48V), stop charging after 60s alarm
Comnunication :
RS-232/USB/SNMP(additional option)
Temperature :
-20~75℃
Humidity :
＜95%
Description

High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger

Model : HI-12224

Features:

1. DSP Intelligent control chip

2. Result fetched from Effective value, not Average value

3. Photoelectricity isolation circuitry technology

4. Switching power is supplied by independent system

5. True Over Temperature Protection

High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger

DSP smart chip the ability of powerful and high speed data treatment and the ability to store huge amounts of information,create Top One excellent products!

Brand new MOSTFET We import U.S. brand Infineon IR MOSFETs with certificate of origin, batch and date of production, which guarantees original and high quality.

R& D Team Our factory has an experienced engineer's team,

mainly specialized in researching, developing

and manufacturing of inverter.

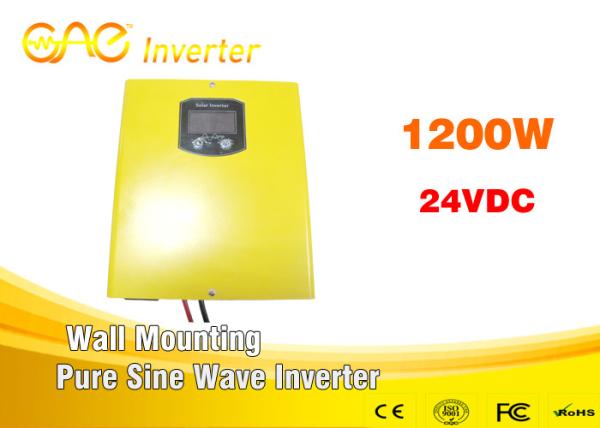

HI Series Wall-mounting Low Frequency Pure Sine Wave Inverter (220V)
Model HI-351 HI-501 HI-601 HIS-801 HI-102 HIS-122 HI-152 HI-202 HI-302 HI-502
Rated Power 350W 500W 600W 800W 1KW 1.2KW 1.5KW 2KW 3KW 5KW
Peak Power 700W 1000W 1200W 1600W 2KW 2.4KW 3KW 4KW 6KW 10KW
Nominal battery voltage 12VDC 12VDC/24VDC 24VDC/48VDC 48VDC
Input DC input range 10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V)
AC Mains input range (220/230/240VAC) 140-275VAC
AC input frequency 50Hz: 45-65Hz / 60Hz: 55-65Hz (50Hz/60Hz automatic recognition)
Protection Low battery alarm ≤10.5VDC (12V) / ≤21VDC (24V) / ≤42VDC (48V) alarm
Low battery protection ≤10VDC (12V) / ≤20VDC (24V) / ≤40VDC (48V) automatic shutdown
High battery alarm ≥15VDC (12V) / ≥30VDC (24V) / ≥60VDC (48V) alarm
High battery protection ≥17VDC (12V) / ≥34VDC (24V) / ≥68VDC (48V) automatic shutdown
Over load protection 110% more than rated capacity, automatic shutdown
High temperature Built-in temperature real time sensor, ≥85℃ alarm, ≥90℃ automatic shutdown
Short circuit protection Automatic shutdown
Output Transfer efficiency ≥87%
Output voltage (DC battery mode) 220/230/240VAC±2%
Output frequency (DC battery mode) 60/50Hz±1%
Output wave form Pure sine wave
Output voltage (AC mains mode) stable 220/230/240VAC±10% output (built-in AVR stablizer)
AVR output stablizer AC mains<140VAC±5% swtich to DC battery mode, AC mains>150VAC ±5% return to AC mains mode;
AC mains>275VAC±5% swtich to DC battery mode, AC mains<255VAC ±5% return to AC mains mode;
The above is for output 220V system reference, 230V/240V output just multiply by percentage
Output frequency (AC mains mode) automatic tracing from AC input
Other Transfer time ≤8ms

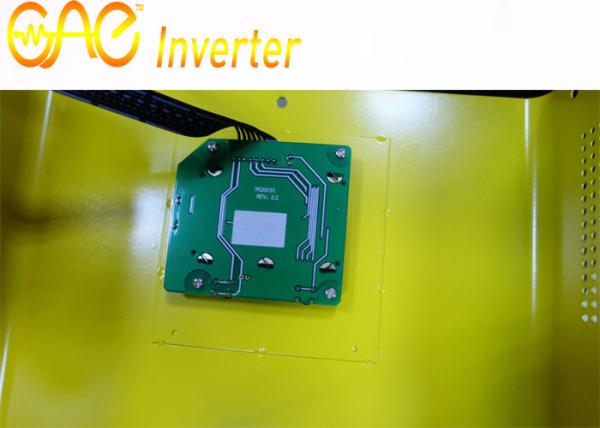

Display LCD Display with function buttons
Cooling system Intelligent cooling fan control system
≤42℃ slow fan, ≥45℃ fast fan
AC Charger AC charging Voltage 13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V)
AC charging current Steady 15A
AC over charge protection Battery ≧16V (12V) ≧32V (24V) ≧64V (48V), stop charging after 60s alarm
Working mode
(Optional)		 01 AC mains priority
Always use AC mains as priority input to provide AC output and automatically charge the battery,
only stops charging when battery is fully charged, and only starts DC to AC converting untill AC mains is off
02 Energy saving
Loading≤10% automatic shutdown, loading≥11%-100% automatic turn on
03 DC battery priority
Always use DC battery as priority input to provide AC output, for 12V system, when battery≥13V, starts DC to
AC converting; when battery≤10.5V during converting, switch to AC mains mode to provide AC output and
automatically start charging the battery (for 24V/48V system, multiply by 2/4 accordingly)
Comnunication RS-232/USB/SNMP(additional option)
Environment Temperature -20~75℃
Humidity ＜95%
Appearance Product size (mm) 240*240*120 　 　 　
Packing size (mm) 　 　 　 　
Net Weight (kg) 7.2 7.5 7.5 　 8.7 　 　 　 　 　
Gross Weight (kg) 　 　 　 　 　 　 　 　 　 　
*Product specifications are subject to change without further notice

High efficiency 87% inverter dc 24v ac 220v 1200w sine wave inverter with charger

Multifunctional operating interface:

a. Adjustable mains priority and inverter priority mode:

Mains priority: When AC mains and DC battery are connected at the same time, inverter chooses AC mains for priority AC output.

b. Inverter priority: When AC mains and DC battery are connected at the same time, inverter converts DC battery power for priority AC output.

Customers can choose mains priority or inverter priority mode according to their own needs, and can switch them at any time.
