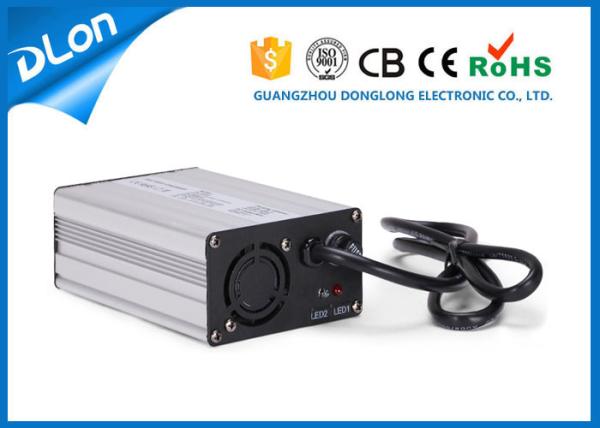

travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger
Specifications
Brand Name :
DLON
Model Number :
DL120-12V/24V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$15.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-Motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger

Brief description :

The 3 wheel 4 wheel travel mobility scooter charger is portable for carrying, durable,

lt is suitable for 12v 24v 36v 48v 10ah 20ah 30ah lead acid batteries

Feature :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

The mobility scooter charger specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery chargertravel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery chargertravel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery chargertravel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger

travel power mobility scooter 10ah to 20ah charger 24v 12a 1.5a 2a off board lead acid battery charger

For more information about battery charger or other items, don't hesitate to contact me !!
