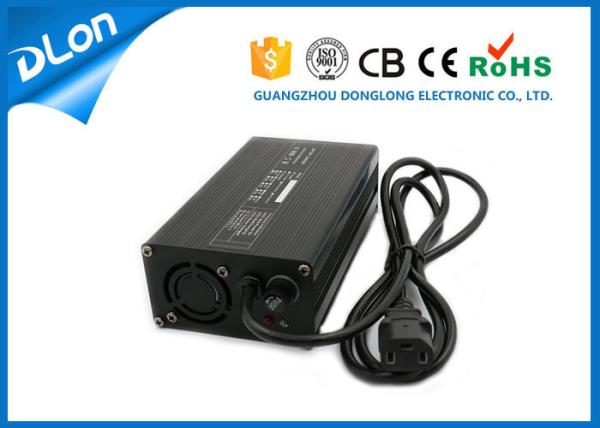

36v 48v e-bike lithium battery charger 20ah 23AH for electric three wheel bike/electric mountain bike 42.0/54.6V output

Brief description :
36v 48v e bike lithium battery charger 20ah 23ah is suitable for electric three wheel bike/ electric mountain or other ev products, it is automatic smart intelligent charger, multi-products, Two led light, Easy to use and carry , durable and high efficiency . It is good choose for your electric bike or other ev products.

Feature :
1. Aluminium case , light weight
2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ
3. Max wattage : 180 W
4. Charge mode : 3 stage ( CC CV float mode )
5. Charging : High saturation and efficiency
6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)
7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 180W battery charger specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.



Package & Delivery
1. Package : one piece one neutral box , 12 pcs/ carton, can be customized
2. Delivery : 5 to 7 working days , big order according to actual quantity
3. Delivery port : Guangzhou port
4. Payment term : T/T or Western Union
5. Delivery way : by sea / by air / by express or as your requirement


Charging Procedure :

1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
4. When fully charged, disconnect the city power first, then disconnect the battery cable.

For more information about 36v 48v e bike lithium charger or other items battery charger , don't hesitate to contact me !!
