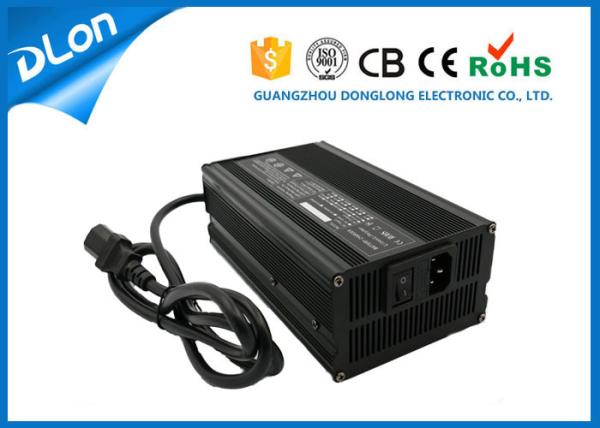

48 volt 8A 10A wheelchair charger automatic battery charger 110VAC

~240VAC factory wholesale

Brief description :

48 volt wheelchair charger 8a 10a is 3 stage cc cv floating charger for lead acid batteries 50ah to 100ah. It is automatic battery charger with two led indicators , multi-protection and high effeciency

Easy to use and convenience to take, it is good helper for your electric wheelchair.

Feature :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~280 V 50 / 60 HZ

3. Max wattage : 600 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 3-stage mode charging :

First stage ( constant current ) : The charger will supply constant current for the battery

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

The 600W wheelchair charger 48 volt 8a 10a specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

For more information about 48 volt wheelchair charger or other items chargers, welcome to contact us !
