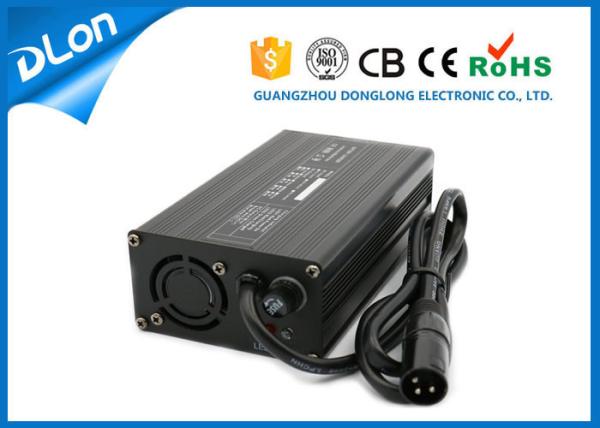

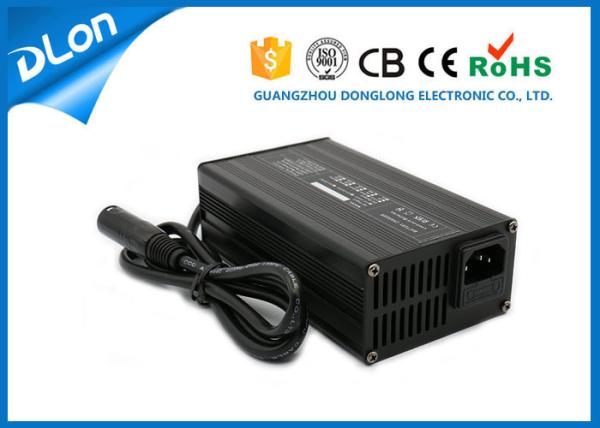

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification
Specifications
Brand Name :
DLON
Model Number :
DL120-12V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
48 pcs
Price :
$15.0 ~ $20.00
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
electric motorcycle, e bike, mobility scooter, golf buggy , electric tools etc
Warranty :
18 months
Material :
Aluminium case , pcb board
Description

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification

Brief Introduction :

smart 12v trickle charger is 3 stage cc cv floating charger, it is automatic smart and high efficiency, multi-protection such as over-temperature , over-voltage, short circuit , reserve polarity etc, Satety and durable, easy to use and convenience to carry, It is good choose for your electric motorcycle !

Feature :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification

The smart 12v trickle charger battery charger for electric motorcycle specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certificationsmart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification

Charging Procedure :

  1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
  2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
  3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
  4. When fully charged, disconnect the city power first, then disconnect the battery cable.

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification

smart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certificationsmart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certificationsmart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certificationsmart 12v trickle charger for gel & agm motorcycle battery 4amp with ce& rohs certification

For more information about our 12 v trickle charger or other items battery charger , don't hesitate to contact me !!
