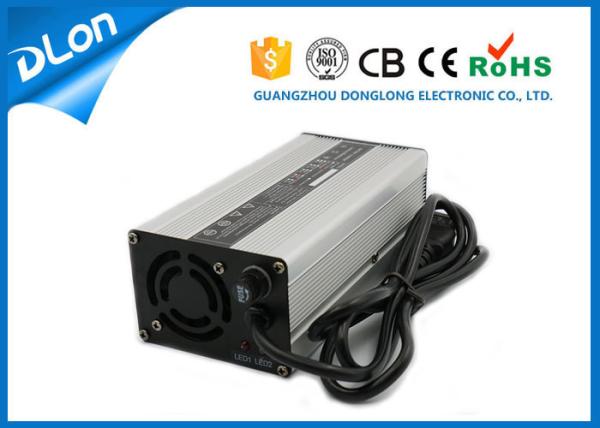

72v 12ah 20ah electric scooter charger 2.5amp AC100V to 240V lead acid/lithium ion battery charger

Brief introduction :

Our battery charger have difference kinds for ev products such as electric scooter, e bike ,electric motorycle, golf cart, e truck, electric bus etc, voltage is from 12volt to 144volt . the amp can adjust as your requirement. The charger for lead acid batteries , lithium ion batteries / AGM/GEL /LIPO batteries.All charger is easy to operate, intelligent .Welcome to inquiry and know more !

Feature :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~280 V 50 / 60 HZ

3. Max wattage : 360 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 3-stage mode charging :

First stage ( constant current ) : The charger will supply constant current for the battery

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

The 360w battery charger specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement
