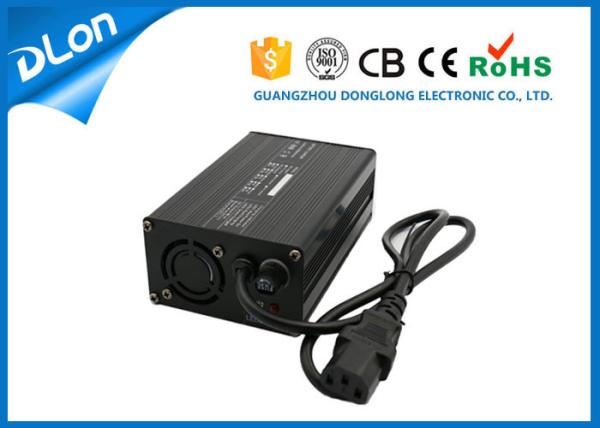

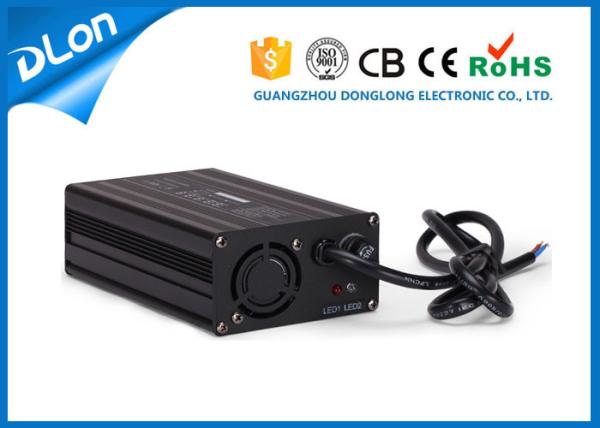

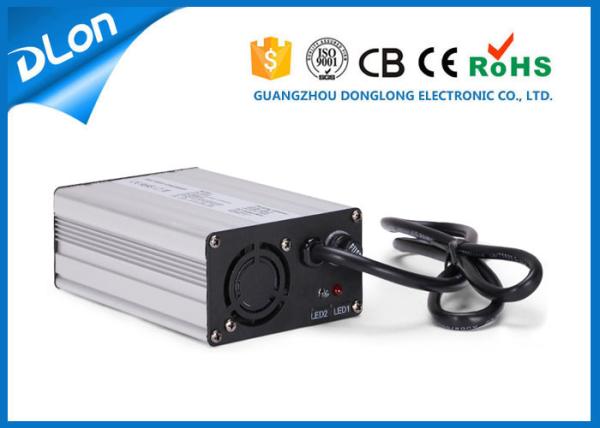

12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah
Specifications
Brand Name :
DLON
Model Number :
DL120-12V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$17.0 ~ $20.00
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah

Brief description :

12v 4amp battery charger is not only suitable for golf buggy& golf trolley, but also can use on mobility scooter, electric bike, motorcycle etc ev products. it is intelligent , smart battery charger, factory wholesale. 100% qualified testing, durable , high efficiency and save money for you.

Feature :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The lead-acid battery charger structure as follows :

12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah

The 120w battery charger specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah

12v 4a lead acid/lithium ion battery charger for golf trolley & golf buggy &golf caddy 24ah to 35ah

For more information about golf trolley battery charger or other items, don't hesitate to contact me !!
