Specifications
Brand Name :
DLON
Model Number :
DL120-48V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$15.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
mobility scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

Guangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesale

Brief description :

mobility scooter charger 48v 24v 12v 36v is 3 stage cc cv floating charger for 2a 3a 4a 4a lead acid batteries. Factory wholesale mass produce high quality , The mobility scooter charger with multi-protection, high effecient, Easy to use and convenience to take.it is good choose for your scooter !

Feature :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~280 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

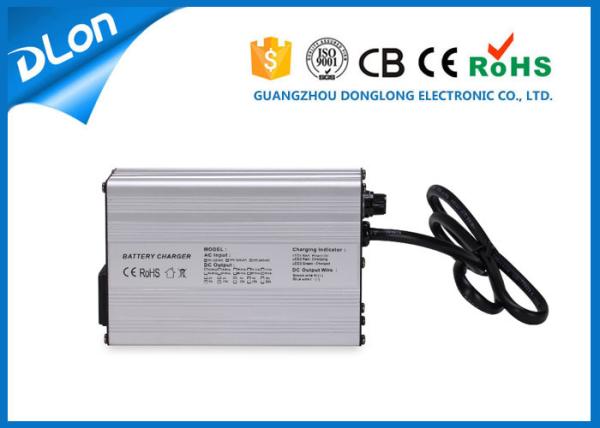

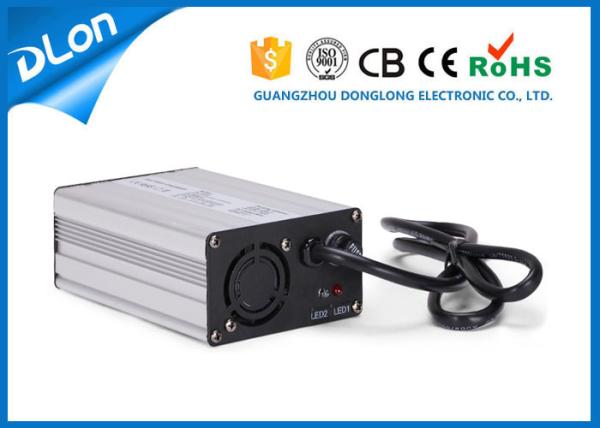

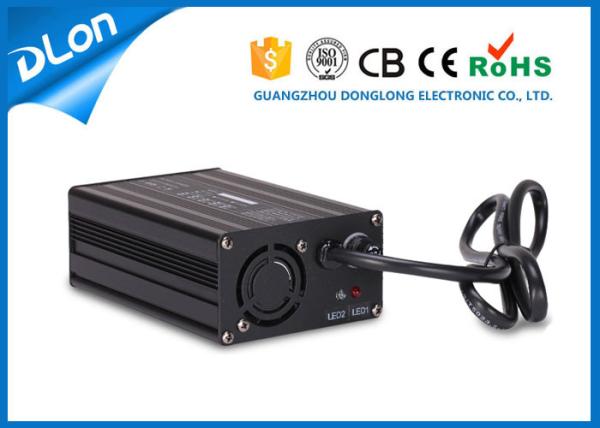

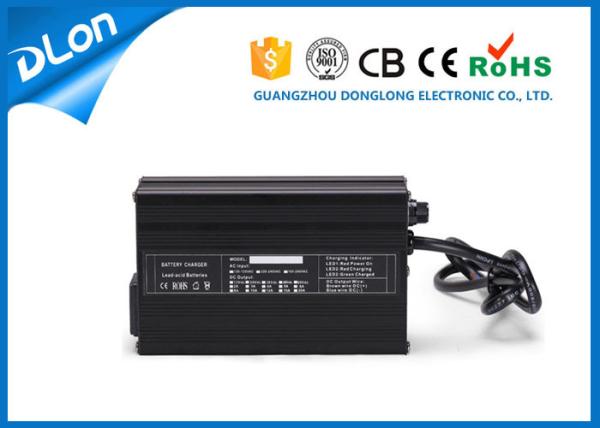

The pictures of mobility scooter charger battery charger as follows :

Guangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesale

The 12v 24v 36v 48v mobility scooter battery charger specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Guangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesaleGuangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesaleGuangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesaleGuangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesale

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

Guangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesale

Guangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesale

Guangzhou mobility scooter charger 48v 24v 12v 36v electric scooter charger 2a 3a 4a 5a factory wholesale

For more information about our mobility scooter charger, welcome to contact us! Thanks !!
