Specifications
Brand Name :
DLON
Model Number :
DL120-36V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$17.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-280VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger

Brief description :

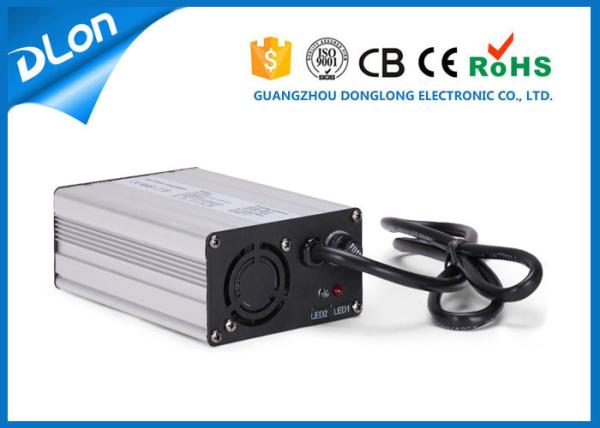

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~280 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 120w battery charger specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger

2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger

Charging Procedure :

  1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
  2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
  3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
  4. When fully charged, disconnect the city power first, then disconnect the battery cable.

2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger

2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger2 wheel mobility scooter 36v 10ah charger 20ah 30ah 40ah 50ah 60ah 12v 24v 48v battery charger

For more information about battery charger or other items, don't hesitate to contact me !!
