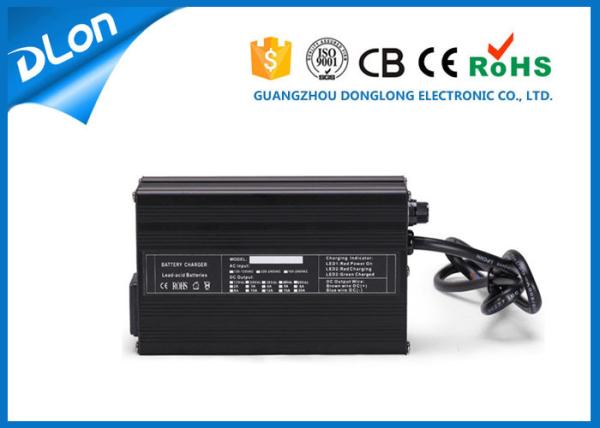

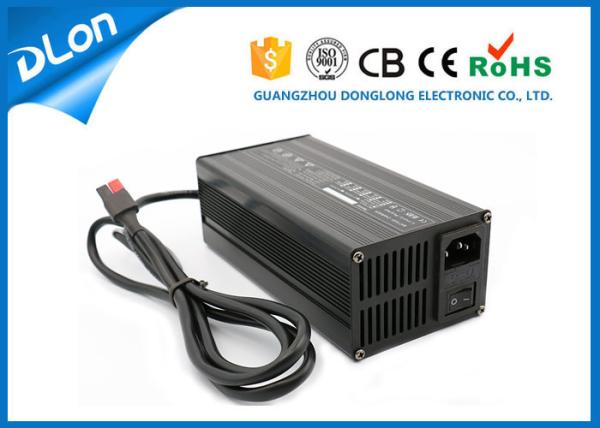

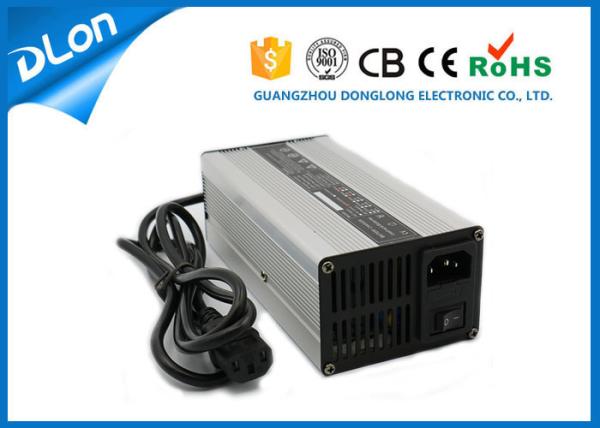

Automatic lead acid battery charger 24 volt 8amp 10amp 12amp for power chair / electric wheelchair

Brief description :

Automatic battery charger 24 volt 8amp 10amp 12amp is not only suitable for electric wheelchair, but also use on mobility scooter or other electric tools. It is 3 stage cc cv floating smart battery charger, multi-protection, durable, high efficiency. 2 led indicatior, Easy to use and convenience to take, That is good for

your home and outside using for your electric wheelchair or electric tools.

Feature:

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 360 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 3-stage mode charging :

First stage ( constant current ) : The charger will supply constant current for the battery

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

The battery charger 24volt 8a 10a 12a for electric wheelchair specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

For more information about electric wheelchair battery charger or other chargers, welcome to contact me !
