Specifications
Brand Name :
DLON
Model Number :
DL180-24V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$21.0 ~ $25.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
155*90*50mm
Weight :
1.0 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
180W
Ambient temperature :
-20 °C to +50°C
Protection :
SCP,OVP,OCP,OTP
Application range :
mobility scooter,power wheelchair,golf caddy, electric floor washer etc
Warranty :
18 months
Description

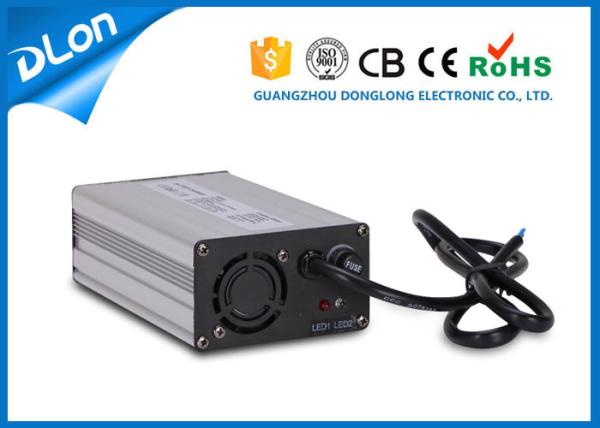

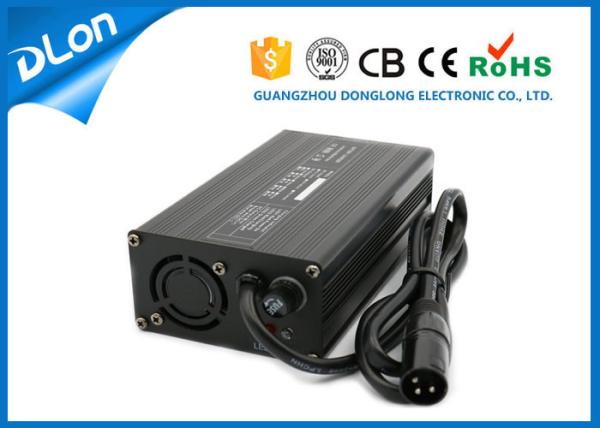

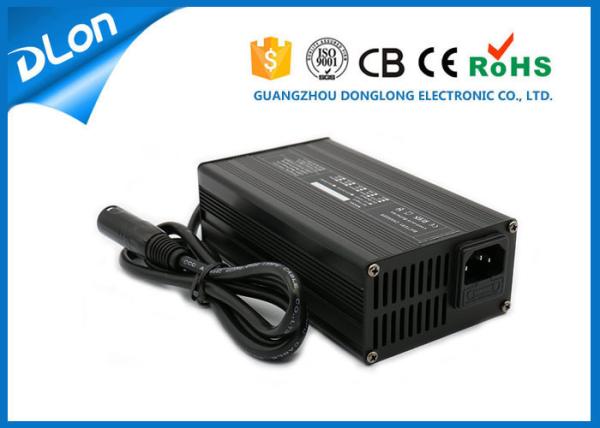

Wholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC input
Brief Description :
24v 5a lead acid battery charger is automatic smart charger with 3 stage cc cv floating charging mode. It can be used on mobility scooter , power wheelchair , electric golf caddy , electric tools etc ev products. High efficiency and high saturation , Easy to use and convenience to take. Safety and multi protection. That will be good for prolonging your batteries' lives.

Feature :
1. Aluminium case , light weight
2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ
3. Max wattage : 180 W
4. Charge mode : 3 stage ( CC CV float mode )
5. Charging : High saturation and efficiency
6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)
7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 3-stage mode charging :
First stage ( constant current ) : The charger will supply constant current for the battery
Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.
Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.


The 180W 24v 5a battery charger specification :

Nominal

Output Voltage
CV CCTransition / Cut-off CurrentNet Weight Size
Lead AcidLi-ionLiFePO4 ALead Acid (A) Li(A) (kg) (mm)
DL180-12V14.7V16.8V14.6V 8A 1.6 0.4 1.0155*90*50
DL180-24V29.4V29.4V29.2V 5A 1.0 0.25
DL180-36V44.1V42.0V43.8V 4A 0.8 0.2
DL180-48V58.8V54.6V58.4V 3A 0.6 0.15


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

wholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC inputwholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC inputwholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC inputwholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC input

Package & Delivery
1. Package : one piece one neutral box , 12 pcs/ carton, can be customized
2. Delivery : 5 to 7 working days , big order according to actual quantity
3. Delivery port : Guangzhou port
4. Payment term : T/T or Western Union
5. Delivery way : by sea / by air / by express or as your requirement


wholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC input
wholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC input
wholesale 180W 24v 5a lead acid battery charger 100VAC ~ 240VAC input
For more information about 24v 5a lead acid battery charger or other battery charger 12v 24v 36v 48v 60v 72v , welcome to contact us !
