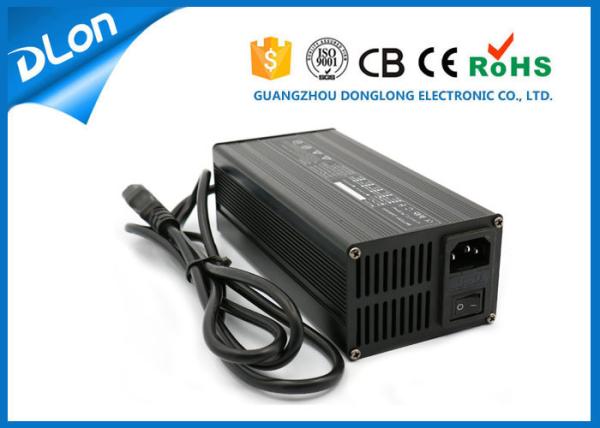

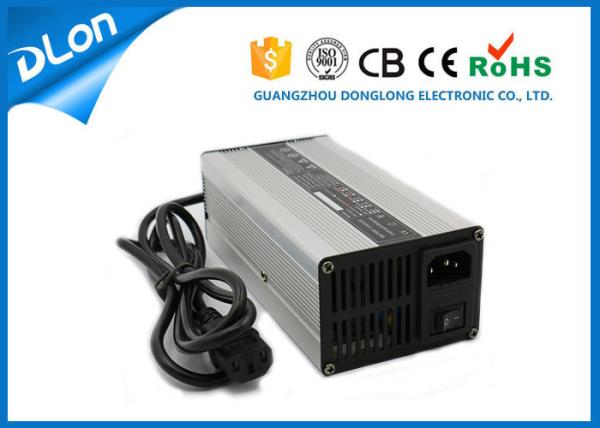

360W 4A 5A 60 volt battery charger for electric scooter / electric scrubbers

Brief Decription :

60 volt battery charger is automatic smart charger for lead acid / lifepo4 / lithium ion batteries 4A 5A. High efficiency and high saturation. It can be used on electric scooter, electric scrubbers, electric motorcycle , electric tools etc. High efficiency and high saturation. Easy to use and convenience to take. Safety and multi protection. That will be good for prolonging your batteries' lives

Feature :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 360 W

4. Charge mode : 3 stage CC CV float mode for lead acid battery charger or 2 stage cc cv for lithium

/ lifepo4 battery charger

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 3-stage mode charging for lead acid battery charger :

First stage ( constant current ) : The charger will supply constant current for the battery

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

The 360W 60 volt battery charger specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Advantage :

1. full automatic transition of cc cv and float/ cut-off (cc cv 2 or 3 stage charger)

2. Precise limit of voltage& current, guarantee fully charged and avoid over charger

3. Protections : short circuit, over voltage, over-temperature, reverse polarity protections, Dc output isolated from AC input

4. High Efficient : > 85% PFC :0.96 Eco-friendly

5. Two led indicators LED1 Red ( power on ), LED 2 Red/Green ( charging/full )

6. Safety and high quality, Advantage high frequency switching mode power supply technology

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

For more information about 60 volt battery charger or other battery charger 12 volt 24 volt 36 volt 48 volt 72 volt , welcome to contact us !
